Call Flow (Blocking)¶

If a flow has a Return Result block, the blocking Call Flow endpoint is how your code gets that result: one GET or POST request starts an instance of the flow and waits; the value the Return Result block returns arrives as the response body. In one round trip the FlowRunner™ flow answers like any other API. When you only need the work started, use Call Flow (Non-Blocking) instead. The examples on this page use a flow named Order Lookup: it takes an orderId and answers with that id and the order's status (for the example, always shipped), or with an error when no orderId came.

Endpoint (`GET` or `POST`)¶

https://api.flowrunner.ai/
            {workspace-id}/
            {api-key}/
            automation/flow/
            {flow}/
            activate-blocking?waitResponseTimeoutSeconds={time-in-sec}

Placeholder	Value	Where it comes from
`{workspace-id}`	The workspace the flow belongs to	Workspace Settings ▸ General ▸ Credentials - see Workspace Settings
`{api-key}`	The workspace's API key	Same place
`{flow}`	The flow's id, or its name URL-encoded (`Order%20Lookup`) - either one works	The id is the segment after `/flow/` in the address bar while the flow is open. The name is in the breadcrumb at the top of the flow and in the flows list in the sidebar - see Flows. Names are unique within a workspace, so one name always means one flow. Both forms are case-sensitive. An id URL survives a rename; a name URL does not
`{time-in-sec}`	How long the call waits for the run to finish, in seconds. Optional - the default is `5` and the maximum is `300`	You pick it - see How long the call waits

What you send with the call becomes the run's Initial Data.

Flows without a Return Result. The Launch Flow Instance dialog writes the non-blocking URL, not this one, so build this call by hand: take the Calling with GET or Calling with POST example, put your flow's id or name in place of Order%20Lookup, and drop orderId=1042 or replace it with what your flow reads. The answer is the run envelope.

The flow has to be LIVE. The endpoint answers only while a version of the flow is LIVE - the state a version enters when you start it (see Running Flows); otherwise the call is refused with error 28053. The address carries no version, so it always runs whichever version is live now: making a different version live changes what this URL executes, without changing the URL.

The URL is a credential. It embeds your workspace's id and API key, so anyone who has it can start runs of this flow, read whatever the Return Result returns - the order data in this example - and spend your workspace's execution allowance. Keep it server-side, out of client code and untrusted configs. If one does get out you have two ways to close it, and they differ in blast radius. Regenerating the workspace's API key kills every URL built on the old key at once - the leaked one included, which then answers 2027 - but it also breaks every other call your systems make with that key, so they all have to be rebuilt with the new one. Taking this version out of LIVE - Stop or Pause in the flow's toolbar - is the narrower move: every copy of this flow's URL answers 28053 at once and nothing else is disturbed (see Running Flows). Reach for the key when you do not know how far the exposure goes, and for Stop when you do. The key belongs to the whole workspace, not to this flow, which is why it is the blunter of the two: see Workspace Settings. To keep the key out of the URL altogether, send it in a header - see Sending the key in a header.

You do not have to assemble the URL by hand - FlowRunner writes it for you.

Calling with GET¶

Copy, fill in the two credential placeholders, and run - the flow's values travel in the query string. For your own flow, put its id or name in place of Order%20Lookup and its values in place of orderId=1042:

curl "https://api.flowrunner.ai/{workspace-id}/{api-key}/automation/flow/Order%20Lookup/activate-blocking?waitResponseTimeoutSeconds=30&orderId=1042"

You do not have to set any headers on a GET. Every query parameter except waitResponseTimeoutSeconds becomes one value in the run's Initial Data, under its own name. Encode your values as in any query string - send a space as %20 - and the flow receives the decoded value. Query values arrive as text: orderId=1042 reaches the flow as "1042". When the flow needs real numbers, booleans, or structured values (objects, lists), call with POST instead. Any GET of this URL starts a real run, including one from a link preview, a browser prefetch or an uptime monitor, so if it ever has to appear in a document or a chat, paste it as plain text, never as a clickable link. A HEAD request is refused with HTTP 405 and starts nothing.

Calling with POST¶

Copy, fill in the two credential placeholders, and run - the flow's values travel in a JSON body. For your own flow, put its id or name in place of Order%20Lookup and its own properties in place of orderId:

curl --request POST \
  --url "https://api.flowrunner.ai/{workspace-id}/{api-key}/automation/flow/Order%20Lookup/activate-blocking?waitResponseTimeoutSeconds=30" \
  --header "Content-Type: application/json" \
  --data '{
    "orderId": 1042
  }'

A POST body is a JSON object, sent with Content-Type: application/json (a charset parameter is fine; any other media type is refused with HTTP 415). Each top-level property becomes one value in the run's Initial Data, with its JSON type kept: {"orderId": 1042} reaches the flow as the number 1042.

When a POST carries both a body and query parameters, FlowRunner merges the query parameters into the body object. Two rules follow from that, and both are refusals rather than silent surprises: a key sent both ways is refused with 28064, and a body that is valid JSON but not an object - an array, a bare string - is refused with 28064 too, because there is no object to merge into. A non-object body on its own, with no query parameters, is still accepted: the run starts with nothing for Initial Data to pick up by name. waitResponseTimeoutSeconds is read from the query string only: sent as a body property it does not set the wait: the call falls back to the five-second default, and the property lands in Initial Data like any other. Put it in the query string. The URL is the same one a GET answers, so any fetch of it - a link preview, a browser prefetch, an uptime monitor - starts a real run; if it ever has to appear in a document or a chat, paste it as plain text, never as a clickable link. An empty object or no body at all is accepted: the run starts, with nothing for Initial Data to pick up by name.

Sending the key in a header¶

The same call is also accepted at a second address that keeps the API key out of the URL, in an FR-Access-Key header. The URL then stops being a credential: on its own it starts nothing, so a link preview, a browser prefetch or a URL pasted into a chat cannot start a run.

https://api.flowrunner.ai/api/v1/{workspace-id}/flows/{flow}/activate-blocking?waitResponseTimeoutSeconds={time-in-sec}

Use this address in code that can send headers. The address in Endpoint, with the key in the path, is deprecated: it keeps working, and no date has been set for removing it.

The GET example, sent this way:

curl --header "FR-Access-Key: {api-key}" \
  "https://api.flowrunner.ai/api/v1/{workspace-id}/flows/Order%20Lookup/activate-blocking?waitResponseTimeoutSeconds=30&orderId=1042"

The POST example, sent this way:

curl --request POST \
  --url "https://api.flowrunner.ai/api/v1/{workspace-id}/flows/Order%20Lookup/activate-blocking?waitResponseTimeoutSeconds=30" \
  --header "FR-Access-Key: {api-key}" \
  --header "Content-Type: application/json" \
  --data '{
    "orderId": 1042
  }'

Everything else works as on the address in Endpoint: GET or POST, the query parameters, the body, the response, and the error codes, plus 2029 below. What changes is where the key goes:

The header is the only place this address reads the key. Without it, the call is refused with 2029. A system that can only be given a URL cannot send a header; give it the address in Endpoint, and handle that URL as the credential it is - see The URL is a credential.
Authorization: Bearer is not read. A key sent that way counts as missing, and the answer is 2029.
The header wins on the address in Endpoint too. Sent alongside the key in the path, a wrong FR-Access-Key header is refused with 2027, even when the path holds the right key.

The dialog that writes the call for you writes the address in Endpoint. To send the key in a header, use the address above and move the key into the header.

Response¶

What comes back depends on how many Return Result blocks the run reached. The response is sent when the run finishes, not when a Return Result produces its answer: that block ends the path it sits on, but other branches keep working and the caller waits for all of them. So the five-second default covers the whole run, not just the time to the answer.

One Return Result: the body is its value¶

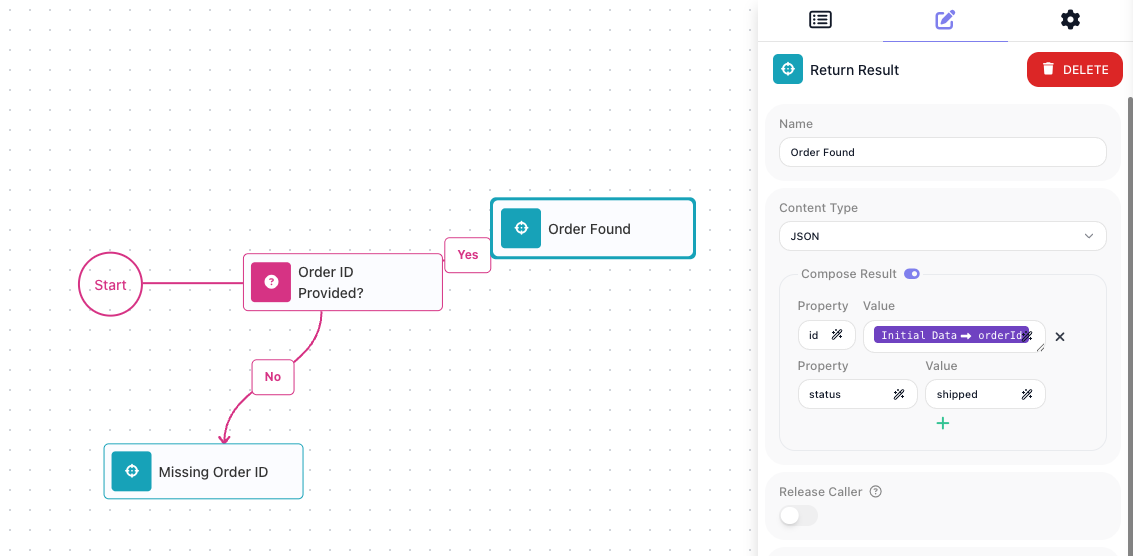

This is the usual case. It also covers a Return Result on each branch of a Condition, since a run takes one branch. The body is the value that block composed, in the Content Type set on the block. Order Lookup checks that an orderId arrived and then ends in one of its two Return Results. Order Found composes id from Initial Data → orderId - the value the caller sent - and status as shipped. Missing Order ID answers when no orderId came. The screenshot below shows Order Found selected on the canvas, with its panel: the Content Type, the two Compose Result rows, and the Release Caller toggle, off here (see Release Caller answers early).

A caller that posts {"orderId": 1042} receives:

{
  "id": 1042,
  "status": "shipped"
}

The same call with GET returns "id": "1042", because query values arrive as text. When a caller posts {}, the run takes the No branch and the caller receives Missing Order ID's value, {"error": "orderId is required"}. Both answers are HTTP 200: a Return Result sets the body and its content type, not the HTTP status, so the caller reads success or failure from the body.

The Content Type sets the response format¶

A caller that expects XML or plain text gets it from the same block: the Content Type on the Return Result decides how the value is sent.

JSON - the composed object, as application/json. Switch Compose Result off and the rows collapse to one field, with the toggle now sitting beside the label Result - that is where you switch it back on. The body is then that one value: an object comes back as a JSON object, and text that is not JSON comes back as a JSON string ("shipped").
XML - the block has only the Result field; the body is that value, as application/xml.
Plain Text - the same, as text/plain.

Under XML and Plain Text the body is the value exactly as the block holds it, so an XML parser can read it directly: <order id="1042" note="rush">shipped</order> arrives byte for byte, quotes and all.

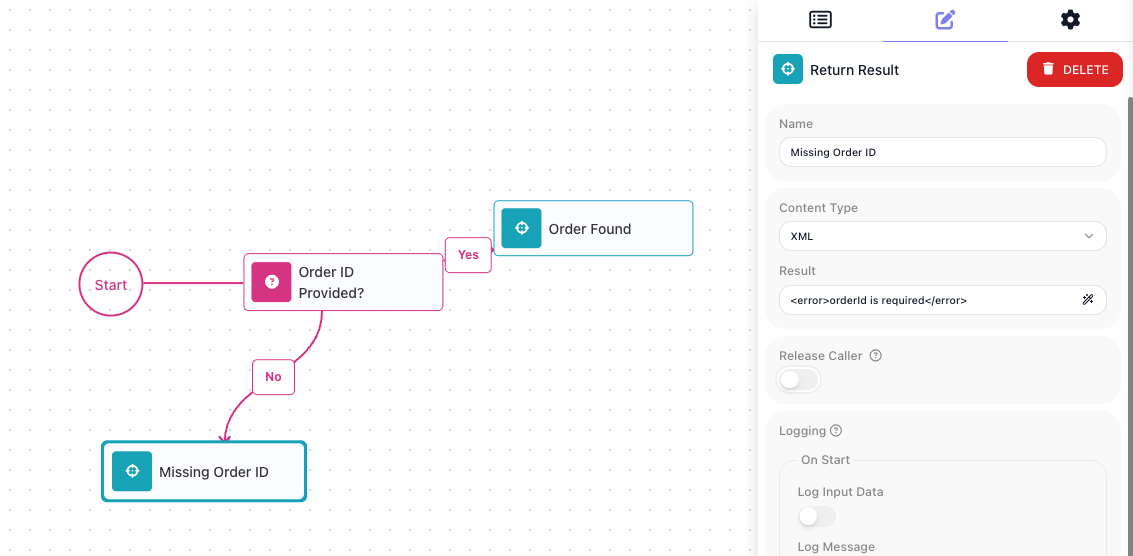

Switching Missing Order ID to XML replaces the Compose Result toggle and its rows with a single Result field. The screenshot below shows it holding <error>orderId is required</error> - what a caller on the No branch then receives.

Switched back to JSON, the block composes error with the value orderId is required - the body shown earlier, and what the rest of this page assumes.

No answer, or more than one: the run envelope¶

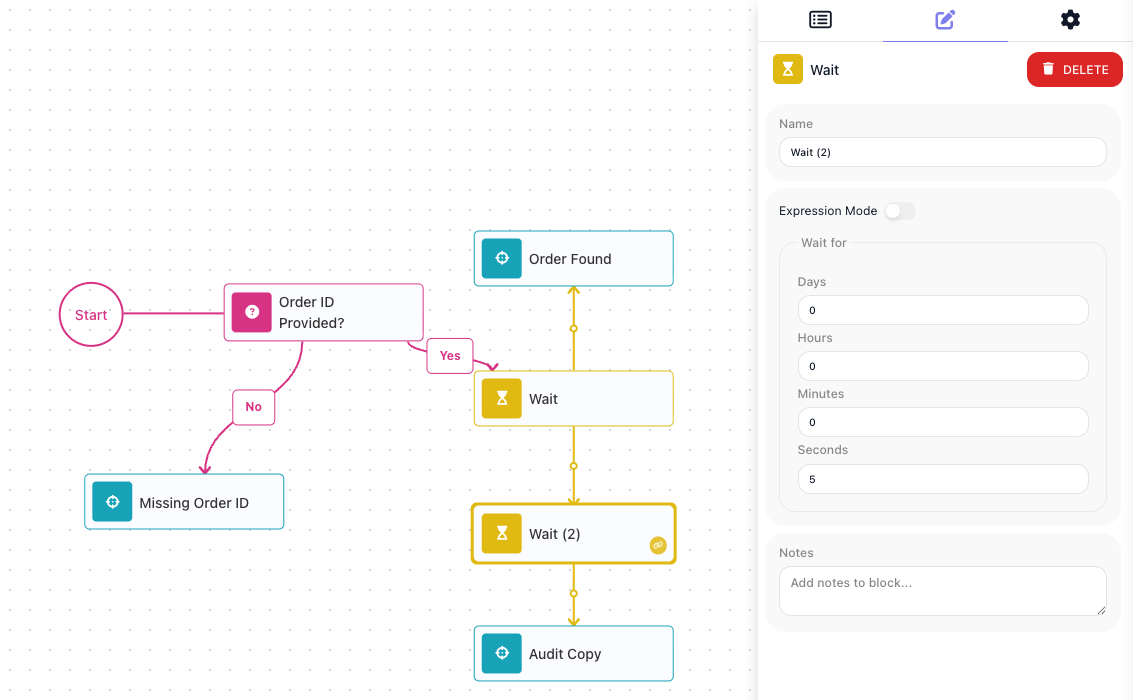

When a run composes no answer, or more than one - a run that reaches no Return Result, or one whose parallel branches each end in one - the caller receives an envelope describing the run instead. To show one, Order Lookup gets a second branch: after the Yes exit, one branch answers with Order Found as before while a second, slower branch ends in a Return Result named Audit Copy that composes an event and the same id. The two Wait blocks only space the branches out: the first delays the split by three seconds, and Wait (2) adds five more before Audit Copy, so Order Found is reached at about three seconds and Audit Copy at about eight. The screenshot below shows the arrangement, with Wait (2) selected; the first Wait, not selected here, is set to three seconds:

A run with orderId reached both, and the caller received:

{
  "executionId": "5AE81D70-6BF9-4C22-BD42-96B4E27686D7",
  "status": "COMPLETED",
  "result": {
    "blockName": "Audit Copy",
    "contentType": "application/json",
    "data": {
      "id": 1042,
      "event": "order looked up"
    }
  },
  "results": [
    {
      "blockName": "Audit Copy",
      "contentType": "application/json",
      "data": {
        "id": 1042,
        "event": "order looked up"
      }
    },
    {
      "blockName": "Order Found",
      "contentType": "application/json",
      "data": {
        "id": 1042,
        "status": "shipped"
      }
    }
  ],
  "apiCallerReleased": false
}

Property	Meaning
`executionId`	The run that was started
`status`	The run's final state: `COMPLETED` when it finished, `TERMINATED` when a block failed or someone stopped the run from the Instances tab. This call answers only after the run is over, so these are the two states it reports
`result`	One of the results the run produced - the block's name, its content type, and the composed value under `data` - or `null` when it produced none. Which one it holds is not predictable when a run produced more than one (here it holds Audit Copy, the block reached second), so do not build on it - find the entry in `results` whose `blockName` is the block you want. Switching Release Caller on for any Return Result removes the envelope from that call, so a client written to `results` stops seeing one
`results`	Every result the run produced, each in the same shape. The order is not guaranteed - Audit Copy was reached second here yet is listed first - so read the one you want by its `blockName`. That value is the block's Name field: a second unnamed Return Result comes out as `Return Result (2)`, so give yours real names - and remember that renaming one later changes what your client has to look for
`apiCallerReleased`	Whether the caller was released early by Release Caller. A released caller gets that block's value instead of the envelope, so any envelope you receive says `false`
`terminationError`	Present only when `status` is `TERMINATED`. A block failure fills in the failing block's `blockName`, an `errorCode` (that block's own error, not one of the call errors in Errors), and a `message`; a run stopped by hand carries only `message`: `Instance was stopped by user`. Read `message` and treat the other two as optional

Your flow has no Return Result. A run that reaches none gets the same envelope, with result null and results empty - so this endpoint is how you wait for such a run and learn whether it finished or failed. Building that call is covered under Endpoint.

Telling the envelope from a composed value. On an HTTP 200, a composed value is whatever the flow's author put in it - Order Found's has a status of its own - so a client that may receive either shape tests for executionId: it is present on every envelope and absent from a composed value unless you put one there, so do not compose a property of that name. A composed value carries no run id, so if your client has to tie a call to its run, find the run on the flow's Instances tab by its start time, or start it with the non-blocking call, which returns one.

The envelope itself always arrives as application/json, whatever the blocks' Content Type is - an XML Return Result inside an envelope keeps its own contentType on its entry, with the markup as a string under data. So for an XML or Plain Text flow the response's Content-Type header alone separates the two shapes, while the executionId test covers the JSON-against-JSON case. A response that is not HTTP 200 is never a flow's answer at all: an HTTP 400 carries a code and a message (see Errors), and a wrong media type or method is refused with application/problem+json, which carries title and detail instead.

When a run fails¶

A run that fails before reaching any Return Result is still HTTP 200; the body is the envelope with status TERMINATED and a terminationError. Order Lookup has no step that can fail, so this envelope comes from another flow, Retry Demo, whose only block, an HTTP Request, was answered with a 503:

{
  "executionId": "27614B25-48EC-46CB-9928-F2C2D785AF23",
  "status": "TERMINATED",
  "result": null,
  "results": [],
  "apiCallerReleased": false,
  "terminationError": {
    "blockName": "HTTP Request",
    "errorCode": 28105,
    "message": "Error occurred while executing 'HTTP Request' block. Block execution failed with an error:\n\n{\n  \"status\" : 503\n}"
  }
}

That run appears on Retry Demo's Instances tab with a filled Has Error mark and a TERMINATED badge - the same instance id the envelope above carries:

A result already sent wins. On Order Lookup without the Audit Copy branch - one Return Result on the path - a step that fails alongside Order Found, such as an HTTP Request to an address that does not resolve, does not take the answer away: the caller still receives {"id": 1042, "status": "shipped"} while the run itself terminates. The envelope above appears only when no Return Result was reached first, and a run whose caller already has an answer still shows as TERMINATED in the list.

Release Caller answers early¶

Answer the caller as soon as the result exists, and let the run finish the work the caller does not wait on - writing an audit record, notifying a downstream system, sending a confirmation. That is what Release Caller is for. A Return Result with the toggle on answers a waiting caller the moment the run reaches it: the body is that block's composed value, and the run carries on with whatever else it has to do. In the parallel arrangement above, switching it on for Order Found gave the caller Order Found's value after the three-second Wait ({"id": 1042, "status": "shipped"}, HTTP 200), while the run went on to reach Audit Copy five seconds later; with it off, the caller waited for the whole run - Audit Copy at about eight seconds - and received the envelope. What follows from that:

The caller receives only that block's value, never the envelope - even when the run had already reached a different Return Result before the one carrying the toggle.
Return Results the run reaches after the release never reach that caller.
A run that never reaches the block (Order Lookup's No branch) answers as if the toggle were off.
With the toggle on more than one Return Result, whichever block the run reaches first answers the caller, and the others change nothing for that call. On branches that start together, which one gets there first is not predictable - two calls to the same flow can return different branches' values.

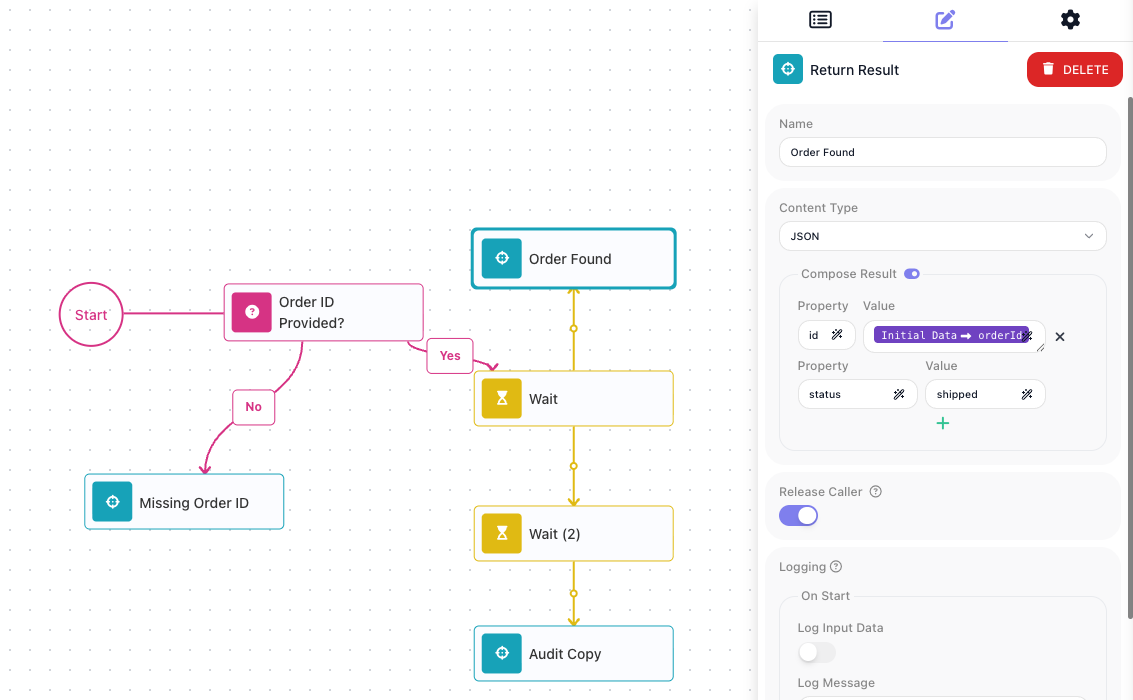

The toggle sits below Compose Result in the block's panel; here it is switched on for Order Found, with the branch still in place:

How long the call waits¶

Set waitResponseTimeoutSeconds on every call: the default is 5 seconds and the maximum is 300. Your own HTTP client's timeout has to be longer than the value you send, or it gives up before the answer arrives. A run that calls a model, waits, or loops past its answer needs more than the default. Pick a value a little above the run's normal end-to-end time - the flow's Instances tab shows each run's Total Time (see Running Flows). A larger one is not free: every waiting call holds a connection open, and a workspace has a ceiling on how many requests it can have in flight (error 998, see Errors), so do not send 300 everywhere. The dialog writes 300, the maximum, so a copied URL waits as long as this endpoint allows while you are testing; the examples here send 30.

When the wait expires. If the run is still going, the call returns HTTP 400 with error 28118. What that means for you:

The run is not cancelled; it finishes on its own.
No executionId comes back. Find the run on the flow's Instances tab by its start time (see Running Flows); if you will need the id, start the run with the non-blocking call instead.
The answer never reaches your code. If the run composes a Return Result value after the wait expires, no call returns it to you. You can still see it: open the run from the flow's Instances tab and read the Return Result block's Output (see Inspecting a Run).
When the answer is known well before the run ends, switch Release Caller on for that Return Result: the call returns the moment the run reaches the block, instead of waiting for the rest of the run. The timeout still applies - it has to be long enough to cover the work up to that block.
Do not retry a timed-out call: the run is already going, and a retry starts a second run with the same data. Turn off any automatic retry-on-timeout in your HTTP client.

Runs longer than the maximum wait. The Release Caller remedy above covers a run that keeps working after its answer. If even the answer takes longer than 300 seconds, or the run pauses at an External Callback, start the run with the non-blocking call and let the flow deliver its answer itself.

Errors¶

Most errors come back as HTTP 400 with a JSON code, a message, and a details object that is empty on the refusals in the table below (a body that is not valid JSON carries no details at all) - read the code. A missing or wrong API key is refused with HTTP 401 instead, and a wrong media type or method is refused at the HTTP level (415 / 405) with no code. This is what an identifier with no LIVE version behind it returns - here Order Lookup while its version was paused; the message echoes what you sent:

{
  "code": 28053,
  "details": {},
  "message": "Flow with ID or name 'Order Lookup' and status 'LIVE' is not found."
}

The id and the name are interchangeable here, and a wrong one of either kind returns this same refusal.

Code	What it means	What to do
`28053`	No LIVE flow with that id or name	Check the identifier is spelled and cased exactly as FlowRunner shows it - a name also has to be URL-encoded (`Order%20Lookup`), and a `+` is not read as a space - and that a version is LIVE. A paused version (Paused) answers this too, so put it back with Resume flow in the flow's toolbar (see Running Flows). Renaming the flow breaks a name URL - the old name answers `28053` - but leaves an id URL working
`2027`	HTTP 401. The API key is wrong: not this workspace's key, or an empty or wrong `FR-Access-Key` header	Re-copy the API Key from Workspace Settings ▸ General ▸ Credentials. Regenerating the key invalidates every URL built on the old one
`2029`	HTTP 401. The `/api/v1/` address was called without an `FR-Access-Key` header; the message reads `Access Key is missing. Send it in the FR-Access-Key header.`	Send the API key in that header - see Sending the key in a header
`9000`	No workspace with that id	Re-copy the Workspace ID from Workspace Settings ▸ General ▸ Credentials
`28064`	Query parameters could not be merged into the body (the same key was sent both ways, or the body is valid JSON but not an object), or `waitResponseTimeoutSeconds` is above 300	Read the `message` - it names the duplicated key, says the body is not an object, or names the rejected timeout. Send each value once, make the body an object whenever you also send query parameters, and keep the timeout at 300 or below
`28118`	The run did not finish within `waitResponseTimeoutSeconds`	The run is still going - do not re-send the call (see How long the call waits). For the next call, raise the timeout (up to 300), or use the non-blocking call and let the flow deliver its answer
`28045`	The flow can be called only by its schedule	Turn off Allow only scheduled flow instances in the Flow Execution Policy checkboxes of the Configure Flow Schedule popup - see Flow Scheduling, which pictures it
HTTP 415	A `POST` body sent without `Content-Type: application/json`	Send that header
`400`	The `POST` body is not valid JSON; the message reads `Request body is not valid JSON.` and there is no `details`	Check that the body parses - a trailing comma or an unquoted key is the usual cause - and send it again
HTTP 405	`PUT`, `DELETE` and `HEAD` are refused	Use `GET` or `POST`. A refused request starts no run

Rate and plan limits. The platform also enforces call-rate and plan limits, answering with one of these codes:

Code	What it means
`999` / `997` / `995`	A request-rate limit was exceeded - back off
`998`	Too many requests are in flight at once - back off
`28132`	Comes back as HTTP 200 with the run `TERMINATED` and this code in `terminationError`, message Exceeded the limit of N flow executions per billing period: the workspace's monthly execution allowance is used up. No new run starts until the billing cycle resets or the plan is raised (see Billing)
`28087`	Too many runs are executing at once - retry once some finish
`28086`	The maximum number of active flows has been exceeded - stop a LIVE flow you no longer need, or raise the plan

Let FlowRunner write the call for you¶

Open the flow and click Run Instance in the toolbar at the top of the flow - the last icon in the row. On a version that is not LIVE - a draft, a stopped version, or a paused one - the dialog writes no URL at all: both tabs read A request URL is only available for flows with LIVE status - start or resume this version to get it. The same toolbar shows Start flow while the version is Ready and Resume flow while it is Paused (see Running Flows).

Run Instance opens the Launch Flow Instance dialog. For a flow that contains a Return Result block it writes this page's URL, built on the flow's name with waitResponseTimeoutSeconds=300 already appended - the maximum, which suits testing; lower it to a little above your flow's normal run time before you ship the call (see How long the call waits) - on two tabs - GET URL and cURL - each with a Copy button. (A flow without a Return Result gets the non-blocking URL instead.) The same dialog also starts a run by hand: LAUNCH starts a run of the flow with the form's values, and Previous Instance lists earlier runs by start time and execution id and refills the form with that run's values - both are covered in Testing.

When FlowRunner detects Initial Data the flow reads, the dialog shows a form for those values first and encodes whatever you type into the URL or the request body. The screenshot below shows the dialog for Order Lookup: the Initial Data form already lists orderId, the value 1042 has been typed in, and the GET URL tab holds the call with the value in its query string. The dialog fills in your workspace's real credentials (blanked to YOUR_WORKSPACE_ID / YOUR_API_KEY in these screenshots). The URL you copy is therefore complete and live: fetching it, accidental fetches included, starts a real run.

The cURL tab, and values as strings or numbers. The cURL tab writes the same call as a POST: the endpoint, the Content-Type: application/json header, and the form's values as the JSON body. These controls decide what lands in it:

The A icon on each value row (tooltip: Use data as string if selected (green)) decides the value's type. A value you type goes out as the type it looks like, with the A dark: 1042 as the number 1042, true as a boolean, {"a":1} as an object. Click the A so it turns green to send the value as text: the body then carries "1042" in quotes, the same string a GET sends, and Order Lookup answers {"id": "1042"} (see Calling with POST for why that matters).
The code icon beside it (tooltip: JSON Editor) opens an editor for that one value - useful when the value is itself an object or a list. APPLY CHANGES writes what you typed back into the Value cell, the GET URL and the cURL body.
The JSON Editor toggle above the form changes nothing in the body: it shows the same values as raw JSON under initialData, and the cURL body is unchanged - the initialData wrapper is the dialog's own display format, not the request body. Send the flat object; a body wrapped in initialData arrives as a single property of that name.

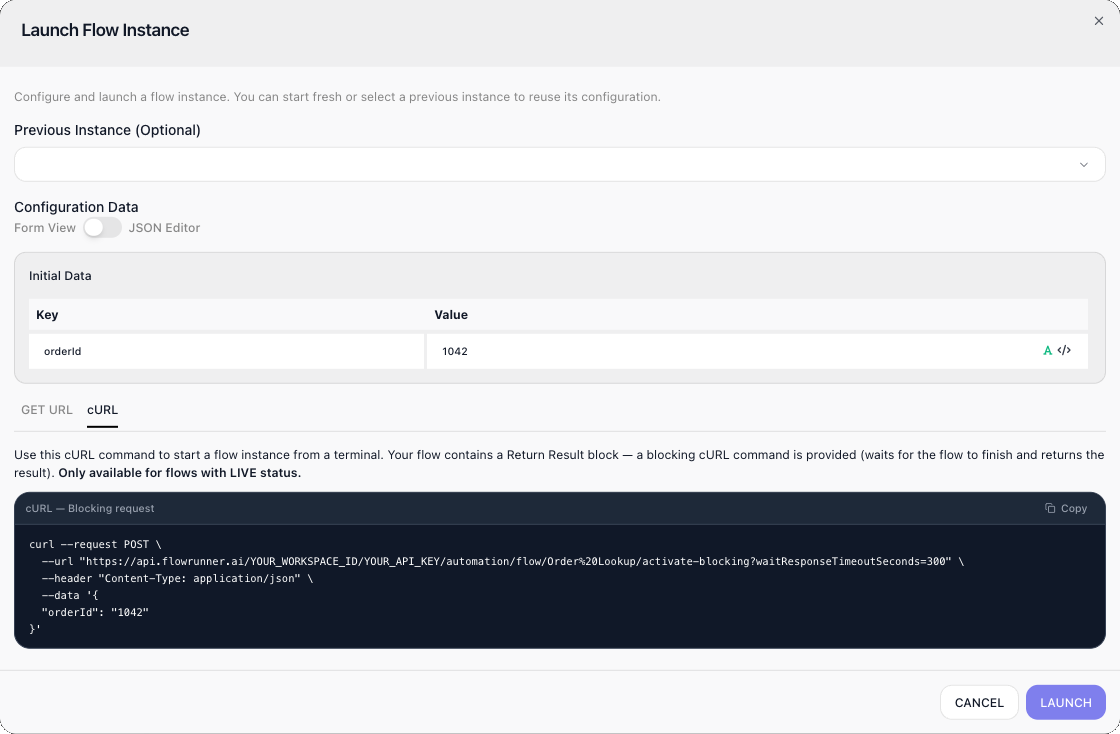

Here is the cURL tab with the A clicked green, so the body carries "1042" in quotes:

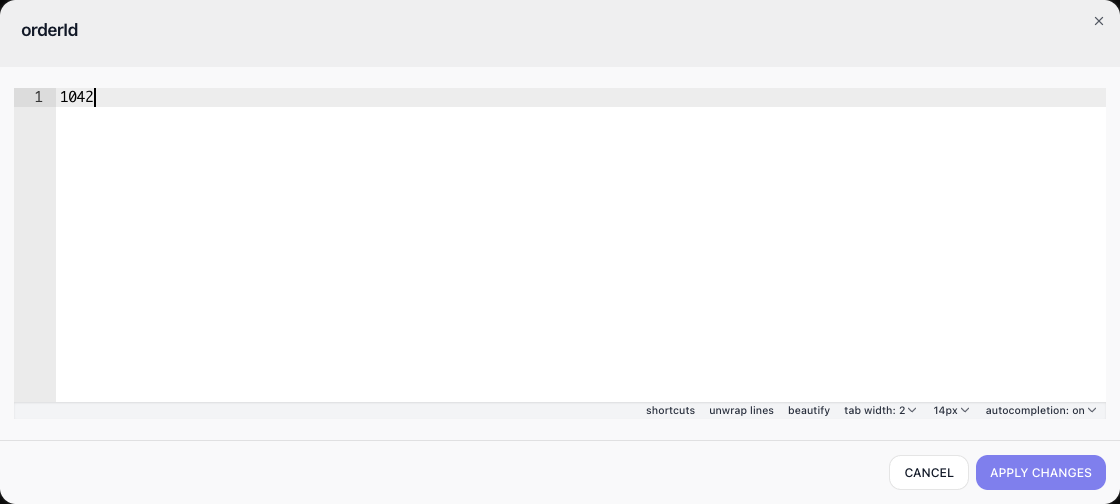

The per-value editor opens on that row's value - here 1042 on line 1, under the orderId title:

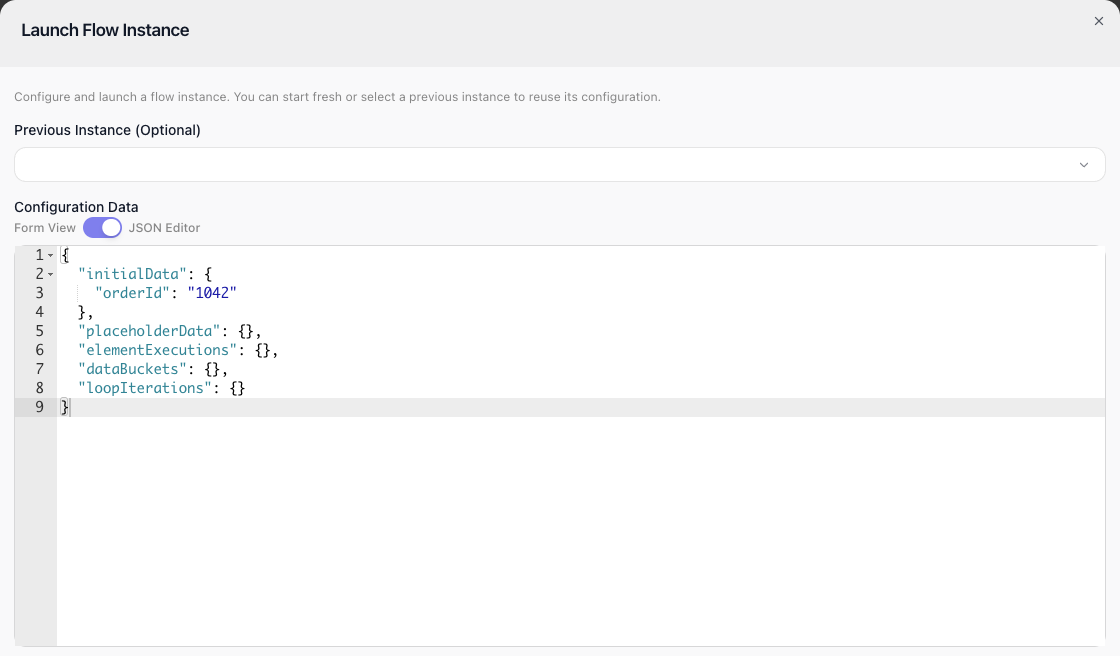

The same value under the JSON Editor toggle:
