Deploying & Managing

npx flowrunner deploy is one command, but what it leaves behind is a versioned extension in a workspace that other people's flows depend on. The command and its flags are on The FlowRunner CLI; this page is what happens around it.

What a deploy sends

Most of the behaviour below follows from two properties:

The definition is built on your machine. The CLI loads your module, models it, and uploads the model with the package. The server never executes your code to work out what it offers, so a service that throws on load fails at deploy time rather than silently in the workspace afterwards.

The unit is one service. A deploy carries the services you named and leaves every other extension on the version it was already running.

Configure it before it runs

A deploy uploads the code and nothing else. Every value the service declares in configItems - an API key, a base URL - is empty in the workspace until someone fills it in on the service's Configuration tab under Custom Extensions, and until then any block that needs one of those values fails. Fill them in once per workspace, right after the first deploy. Later deploys keep the values, as Configuration outlives deploys describes.

The TMDB Configuration tab with the API Key field masked as dots, a Show value eye at its edge, a help icon beside the label, and the SAVE CONFIGURATION button below

Quick Start: Your First Extension (code) walks through filling it in and confirming the key on the EXECUTE tab before building a flow around it.

Versions and the source hash

Every deploy produces a twelve-character hash. It covers services/<id>/ and nothing outside it, which is what lets it answer two questions at once: which version is this, and is this the same code as what is already deployed.

That is why deploying twice without an edit reports same service and uploads nothing, and why the same code produces the same version in anybody's checkout. The console shows the first eight characters of it in the Source Hash column of the Custom Extensions list. Deploying code that matches an older version reports modified service with that older hash and uploads it again.

Each service keeps its history on its own Versions tab, with the active one marked and an Activate button on every other:

The Versions tab listing two deployed versions by source hash and timestamp, the newer marked Active and the older carrying an Activate button

Rollback is per service and immediate. Activating an earlier version switches that service over and leaves every other extension alone. Nothing is uploaded, because the archive is already stored.

Configuration outlives deploys

Config values live separately from the code, keyed per service, so they survive redeploys and rollbacks:

  • Adding a config item leaves the existing values alone. The new field is empty until someone fills it in, so a required one added mid-life will break runs until they do.
  • Renaming one is a new field. The old value is not carried across.
  • Rolling back restores the code only. If someone changed a config value after the version you roll back to, the newer value is what the older code reads.

The caches between a deploy and a run

Three caches sit between a deploy and a running flow:

Cache What it holds When it clears
Definitions the model the flow editor draws from on deploy, activate and delete
Pod package the extracted package, keyed by source hash never invalidated, only added to
Editor bundle the block list in an open editor on deploy, refreshed in place

The pod cache being keyed by hash is why the first execution after a deploy is slower: that hash has never been extracted before. It is also why --force exists, for the rare case where the stored archive is wrong while its hash still matches.

An editor that was already open refreshes its palette after a deploy on its own; a block already placed keeps the name it was given when it was placed.

Removing an extension

Deleting services/<id>/ from your project and deploying again does not remove it. The deploy only touches what it carries, so the service stays live in the workspace on its last deployed version.

Removal is explicit: open the service under Custom Extensions and use Delete. It confirms first, and it removes the service and every version of it. There is no undo, and no rollback afterwards.

The service page header showing the extension name, its entry point and method count, the Methods / Configuration / Execute / Versions tabs, and the Delete button

Remove the blocks from your flows first

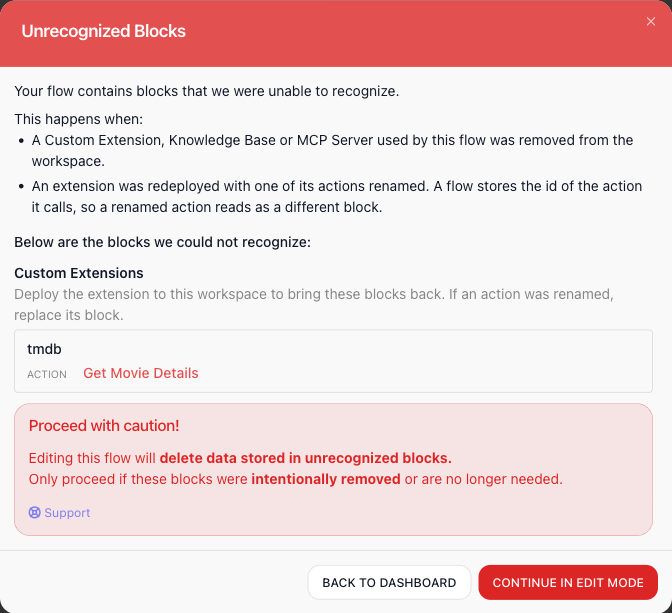

Nothing checks which flows use an extension before deleting it, and nothing warns you. Any flow still holding one of its blocks is left referring to something that no longer exists. Take its blocks out of every flow that uses them before you delete it.

Several projects, one workspace

A workspace accumulates extensions from any number of separate repositories and checkouts.

The risk is naming. Service ids are unique per workspace, and nothing records which project a version came from, so two projects that both define tmdb overwrite each other's versions silently. Agree ids across teams before two repositories deploy into one workspace.

npx flowrunner pull is the other half of this. It downloads the workspace's services into services/, so a fresh checkout can pick up whatever is live, including an extension somebody else deployed:

npx flowrunner init && npx flowrunner login && npx flowrunner pull --all
cd services/tmdb && npm install

Deploying from CI

A CI job has no terminal, so it must name what it wants - a bare deploy has nothing to prompt with and stops rather than guessing:

npx flowrunner deploy --all

The token lives in .flowrunner/token, which is gitignored, so a pipeline supplies it from a secret. Only changed services are uploaded, so running the job on every commit is cheap.

Two things to design for:

  • There is no all-or-nothing rollback. Services deploy one after another. If the third fails, the first two stay deployed. Re-running is safe, because unchanged services produce the same version and are skipped.
  • A token expires after 30 days, and renewing it is a browser round trip, so a pipeline needs someone to refresh it every 30 days.

Separate environments

One project directory is bound to one workspace. For a staging workspace and a production one, use two checkouts, each with its own flowrunner.json and token, and deploy the same code into both.

To move a single project somewhere else, run npx flowrunner login and pick a different workspace on the authorize page - see The FlowRunner CLI.

Before you ship a new version

  • The unit suite passes, including the failure branches.
  • Ids are unchanged - id on the extension, on every action, trigger and dictionary, and every key in a params schema. Changing one breaks the flows already using it.
  • Any new config item is either optional or communicated to whoever administers the workspace.
  • result samples match what the API actually returns now, since flow builders bind against them.
  • The service README describes what changed.
