Synchronize Block¶

The Synchronize block is an advanced FlowRunner component that merges parallel execution branches back into a single execution path. This block is essential for complex workflows where you need to split processing into parallel branches and then consolidate the results or continue with unified execution after parallel operations complete.

Understanding the Synchronize block requires knowledge of how FlowRunner handles branched execution. When a single block connects to multiple successor blocks, FlowRunner automatically creates separate execution branches that run independently and in parallel. The Synchronize block provides a controlled way to merge these parallel branches back together.

Common use cases include consolidating results from parallel data processing operations, ensuring all validation checks complete before proceeding, coordinating multiple API calls that must all finish before continuing, merging parallel approval workflows, and implementing join patterns in complex business process flows.

Understanding Parallel Execution in FlowRunner¶

FlowRunner automatically creates parallel execution branches whenever a block has multiple successors. Each branch runs independently, which can lead to downstream blocks being executed multiple times if they receive input from multiple parallel branches.

Basic Parallel Execution Example¶

Consider this flow structure:

flowchart TD
    A[Trigger A] --> B[Action B]
    A[Trigger A] --> C[Action C]
    B --> D[Action D]
    C --> D[Action D]

In this scenario:

Trigger A creates two parallel branches leading to Action B and Action C
Both Action B and Action C execute simultaneously in separate branches
Action D executes twice - once for each incoming branch
Each execution of Action D operates independently with its own context and data

This parallel execution model provides powerful capabilities for concurrent processing, but sometimes you need to merge branches back into a single execution path.

Synchronized Execution with Synchronize Block¶

The Synchronize block solves the multiple execution challenge by waiting for all incoming branches to arrive before allowing a single consolidated execution to continue:

flowchart TD
    A[Trigger A] --> B[Action B]
    A[Trigger A] --> C[Action C]
    B --> S[Synchronize]
    C --> S[Synchronize]
    S --> D[Action D]

    style S fill:#f9f,stroke:#333,stroke-width:2px

With the Synchronize block:

Action B and Action C still execute in parallel
The Synchronize block waits for both branches to complete
Action D executes only once after synchronization completes
The flow continues with a single execution branch containing consolidated context

Block Configuration¶

The Synchronize block provides flexible timing control to accommodate different synchronization scenarios.

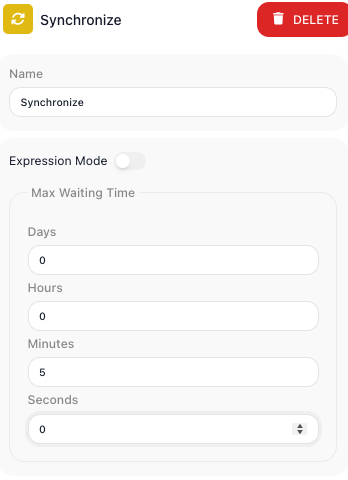

Max Waiting Time Configuration¶

The Max Waiting Time parameter determines how long the Synchronize block will wait for all incoming branches to arrive. This parameter has two configuration modes to accommodate different timing needs.

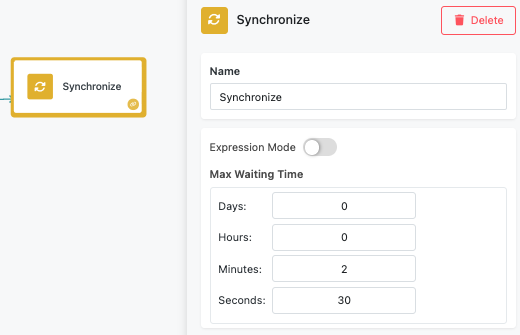

Static Time Configuration¶

In static mode, you specify a fixed duration using individual time units (see the screenshot above).

Time Unit Options:

Days: For long-running processes or batch operations
Hours: For extended processing workflows
Minutes: For standard synchronization scenarios
Seconds: For quick parallel operations

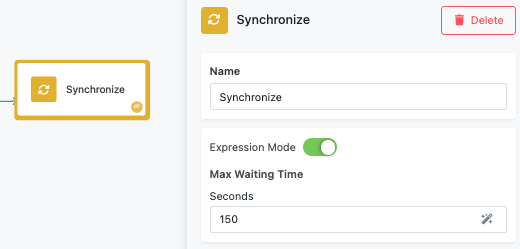

Dynamic Time Configuration (Expression Editor)¶

In dynamic mode, you can specify the wait time in seconds using the Expression Editor, allowing for variable timing based on workflow context:

Dynamic Timing Examples

${ProcessingTime.estimated}: Use calculated processing time estimates
${Configuration.timeoutSeconds}: Reference configuration variables
${APIResponse.expectedDuration}: Base timing on external service estimates
300: Static 5-minute timeout using expression syntax

Timeout Behavior¶

When the Max Waiting Time expires before all branches arrive:

Timeout Handling

The Synchronize block stops waiting and continues execution
Only branches that arrived before timeout are included in the synchronized context
Late-arriving branches are effectively dropped from the execution flow
Consider error handling downstream to detect incomplete synchronization

Implementation Patterns¶

Parallel Data Processing¶

Use the Synchronize block to merge results from parallel data processing operations:

flowchart TD
    A[Data Source] --> B[Process Batch 1]
    A --> C[Process Batch 2]
    A --> D[Process Batch 3]
    B --> E[Synchronize Results]
    C --> E
    D --> E
    E --> F[Consolidate Final Results]

Alternative Approach: Actions Group

For simpler parallel execution scenarios, consider using an Actions Group block with transition mode set to "On Completion". This ensures the outgoing transition happens only when all enclosed actions complete their execution, providing a more streamlined alternative to explicit Synchronize blocks.

Multiple API Validation¶

Coordinate multiple validation API calls before proceeding:

flowchart TD
    A[User Input] --> B[Validate Email]
    A --> C[Check User Permissions]
    A --> D[Verify Account Status]
    B --> E[Synchronize Validations]
    C --> E
    D --> E
    E --> F[Process Valid User]

Alternative Approach: Action Group

Multiple validation calls can also be handled using an Action Group with "On Completion" transition mode, which automatically waits for all validations to finish before proceeding.

Best Practices¶

Synchronization Design Strategy

Plan Branch Timing: Consider the expected duration of each parallel branch
Set Appropriate Timeouts: Balance between waiting for slow branches and maintaining flow responsiveness
Handle Incomplete Synchronization: Design downstream logic to handle cases where not all branches complete
Monitor Performance: Track synchronization patterns to optimize timing parameters

Common Pitfalls

Overly Short Timeouts: May cause premature synchronization with missing data
No Timeout Strategy: Indefinite waiting can hang workflows
Complex Branch Dependencies: Avoid circular dependencies in parallel branches
Resource Contention: Be mindful of parallel branches competing for limited resources

Performance Considerations

Memory Usage: Synchronize blocks hold branch data until synchronization completes
Execution Time: Total flow time includes the longest parallel branch plus synchronization time
Resource Planning: Account for peak resource usage during parallel execution phases
Error Propagation: Design error handling for both individual branches and synchronization failures
