Triggers

A trigger waits for something to happen outside FlowRunner and hands over what arrives. Where a flow builder places it decides what that means: first in a flow, it starts an instance for each thing it finds; in the middle, the flow runs up to it and waits there until the event comes.

You write the part that knows the API. FlowRunner owns the loop, the stored position and the delivery.

There are two kinds, and the API decides which you write:

	Polling	Realtime
How events arrive	you ask the API on a timer	the provider calls a URL you registered
You write	a query	a subscription, plus how to read the delivery
Needs from the API	any endpoint that lists recent things	outgoing webhooks
Latency	the polling interval	seconds

If the API has webhooks, prefer realtime. If it does not, polling is the only option.

Polling triggers

Register with ext.addPollingTrigger(). You supply a fetch that returns the most recent items, and declare exactly one mechanism that decides which of them are new:

ext.addPollingTrigger({
  category   : 'TMDB',
  id         : 'onMovieReleased',
  label      : 'On Movie Released',
  description: 'Fires for each movie that reaches its release date in the chosen genre.',
  params     : z.object({
    genreId: z.string().optional().label('Genre').dictionary(getGenresDictionary),
  }),
  result: {
    id          : 693134,
    title       : 'Dune: Part Two',
    release_date: '2024-02-27',
    vote_average: 8.133,
  },
  fetch: async ({ params, helpers }) => {
    if (!params.genreId) {
      return []
    }

    const response = await helpers.discover({
      genreId       : params.genreId,
      sortBy        : 'primary_release_date.desc',
      releasedBefore: today(),
    })

    return response.results ?? []
  },
  watermark: { by: 'release_date', sortedDesc: true },
})

function today() {
  return new Date().toISOString().slice(0, 10)
}

helpers.discover is the helper from Service Structure; releasedBefore becomes TMDB's primary_release_date.lte filter.

Property	Type	Required	What it does
category/id/label/description	string	yes	As for an action. id is frozen once deployed.
params	z.object	no	The fields on the trigger block. Plain fields only - a trigger's form is flat.
result	sample	yes	The shape of one emitted item.
fetch	function	no	Returns recent items, for dedupe and watermark.
dedupe | watermark | poll		yes	Exactly one.

Choosing the mechanism

Mechanism	You declare	What the runtime does
dedupe	a function, a field path, or { by, stateKey, max }	Keeps a bounded set of the ids it has seen and emits items whose id is new. Right when items have a stable id but no reliable ordering. stateKey defaults to seen and max to 500 ids, oldest discarded first. An id that comes back in a later poll counts as just seen, so an item that stays in the feed is never the one discarded.
watermark	{ by, sortedDesc, stateKey } where by is a field path or (item, { params }) => value	Stores the highest value it has seen and emits everything past it. Right when items carry a timestamp or an increasing key. stateKey defaults to watermark.
poll	a function returning { events, state }	Full control, and you own the shape of state and the learning-mode behaviour. For overlap windows, held cursors and consuming feeds.

What the runtime stores between polls

Phase	dedupe	watermark	poll
First poll	records the ids it saw, emits nothing	records the highest value, emits nothing	you seed state and emit nothing
Setup preview	shows everything fetch returned, stores nothing	same	yours - the runtime returns what you return
Every later poll	emits ids not in the set	emits items past the mark, advances it	your delta

The first poll emits nothing on purpose. It records where the feed stands, so configuring a trigger does not fire a run for every historical item.

The setup preview is your job to limit. While a flow builder configures the trigger, the runtime calls your handler with isLearningMode: true. With fetch, everything you return is shown, so check the flag and return one item. With poll the runtime does nothing at all - it hands the flag straight to you and returns your result verbatim, so read it and return a single event with state: null yourself.

The watermark trap

The stored mark is whatever the chosen field held on the first poll, so a field the API can hand back out of order stops the trigger firing with no error anywhere.

TMDB is a live example: it lists announced films with placeholder release dates years in the future, and sorting by release date descending puts those first. A seeding poll can store a date such as 2047-05-11, and nothing will ever be newer than that. The fix is in the query, not the mechanism - ask only for titles that have actually been released:

const response = await helpers.discover({
  genreId       : params.genreId,
  sortBy        : 'primary_release_date.desc',
  releasedBefore: today(),                       // clamps the feed to today
})

Before shipping a watermark trigger, look at what the API returns at the top of the feed and ask what the stored value would be after the first poll.

sortedDesc: true is the second trap on the same mechanism. It tells the runtime to stop scanning at the first item that is not past the mark, which is a shortcut that assumes the API really did sort the way you asked. On a feed that is only mostly sorted, every new item sitting behind one old item is dropped, silently and permanently. Leave it off unless the ordering is guaranteed.

What your handlers receive

Both take one object: the handler bag every action gets, plus their own arguments.

Handler	Receives	Returns
fetch	params, isLearningMode, and the usual context, config, apiRequest, helpers, logger	the recent items, as an array
poll	the same, plus state	{ events, state }

poll is the escape hatch, for a feed the two stored-state mechanisms cannot express - an overlap window, a cursor you hold back, a queue that consumes what it reads:

poll: async ({ params, state, isLearningMode, apiRequest }) => {
  const since    = state?.cursor ?? null
  const response = await apiRequest({ url: '/events', query: { since } })
  const events   = response.events ?? []

  if (isLearningMode) {
    return { events: events.slice(0, 1), state: null }   // preview one, store nothing
  }

  if (!state) {
    return { events: [], state: { cursor: response.next_cursor } }   // first poll: seed, emit nothing
  }

  return { events, state: { cursor: response.next_cursor } }
},

A half-configured trigger

Each poll validates the saved trigger against params. A required field it lacks, or a value that breaks a rule, fails that poll with invalid triggerData, and it fails again on every poll until someone fixes the block. Declare filters .optional() and guard instead:

fetch: async ({ params, helpers }) => {
  if (!params.genreId) {
    return []
  }
  …
}

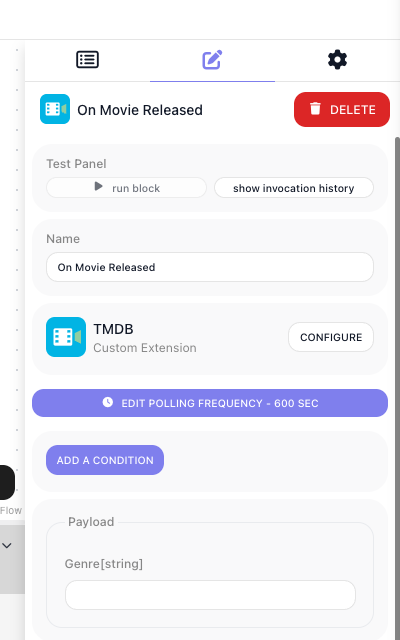

What the flow builder sees

The trigger's params appear under Payload, and the block carries two controls of its own: EDIT POLLING FREQUENCY, which starts at 600 seconds, and ADD A CONDITION for narrowing what it passes on. The frequency can also be daily, weekly, monthly or once; an interval below 30 seconds is refused with Billing limits require frequency of 30 seconds or more. Your description is shown in the block palette as you wrote it.

Realtime triggers

Realtime triggers are driven by SYSTEM methods the runtime owns. You never write those; you declare the pieces they call.

ext.setupRealtimeTriggers() is declared once for the extension and owns the webhook:

Property	What it does
scope	'SINGLE_APP' for a webhook per workspace, 'ALL_APPS' for one callback shared by every workspace.
scopeAt	With ALL_APPS, the path in the payload holding the routing key. A delivery goes to the workspace whose eventScopeId it matches.
subscribe	Registers the webhook. Receives callbackUrl, the full set of triggers, and the previous webhookData.
unsubscribe	Tears it down when the flow stops.
extractProviderEventName	A path or function giving the event's name, which routes it to triggers.
extractProviderEventData	A path or function giving the payload. Defaults to the whole body.
verify	A declarative signature check.
refresh	For providers whose registrations expire. Return a new refreshIntervalInSeconds to set when it runs again.
verifyRequest	Replaces verify when the provider signs something other than the raw body. Returns true or false.
resolveEvents	Replaces the extract* pair for payloads too irregular to describe declaratively. May also set the answer to the provider - see Answering the provider.
handshake	Answers a provider's endpoint-verification challenge - see Answering the provider.

Then one ext.addRealtimeTrigger() per event, each claiming a providerEventName:

ext.setupRealtimeTriggers({
  scope                   : 'SINGLE_APP',
  extractProviderEventName: 'event',
  extractProviderEventData: 'data',
  verify: {
    header  : 'X-Vendor-Signature',
    algo    : 'sha256',
    encoding: 'hex',
    secret  : (config) => config.webhookSecret,
  },
  subscribe: async ({ callbackUrl, triggers, webhookData, apiRequest }) => {
    if (webhookData?.id) {
      await apiRequest({ url: `/hooks/${ webhookData.id }`, method: 'delete' })
    }

    const events = [...new Set(triggers.map(trigger => trigger.providerEventName))]
    const hook   = await apiRequest({ url: '/hooks', method: 'post', body: { url: callbackUrl, events } })

    return { webhookData: { id: hook.id } }
  },
  unsubscribe: async ({ webhookData, apiRequest }) => {
    if (webhookData?.id) {
      await apiRequest({ url: `/hooks/${ webhookData.id }`, method: 'delete' })
    }

    return { webhookData: {} }
  },
})

ext.addRealtimeTrigger({
  category         : 'Notes',
  id               : 'onNoteUpdated',
  label            : 'On Note Updated',
  description      : 'Fires when a note changes.',
  providerEventName: 'note.updated',
  params           : z.object({ boardId: z.string().optional().label('Board') }),
  match            : { boardId: 'boardId' },
  result           : { id: 'note_1', body: 'Ship it', boardId: 'brd_1' },
})

Property	What it does
category/id/label/description	As for an action. id is frozen once deployed.
providerEventName	The provider event this trigger claims. Also takes an array, or ({ params }) => string[].
params	The fields on the trigger block.
match	Which configured instances a delivery belongs to.
result	The shape of one emitted event.
extendEventData	Adds to the payload before matching. Pure, no API calls.
extendResult	Enriches the payload after matching, once, and may call the API.
oauth2Scopes	Extra OAuth scopes.

Matching a delivery to the right instances

providerEventName decides which triggers a delivery reaches. match decides which configured instances of that trigger it belongs to, and without it a filter param filters nothing - every instance fires on every delivery.

The declarative form maps a param to a path in the payload:

match: { boardId: 'boardId' },        // fires only when providerEventData.boardId equals the chosen board

An empty param matches everything, so a blank Board still fires on all boards. For ranges, contains, or anything derived, use the function form instead:

match: ({ params, providerEventData }) => providerEventData.wordCount > (params.minWords ?? 0),

A delivery is handled in this order:

1. handshake, if the provider needs its endpoint verified
2. verify or verifyRequest checks the signature
3. extractProviderEventName picks the event name, routing it to every trigger claiming it
4. extractProviderEventData, then extendEventData, build the payload
5. match runs per configured instance
6. extendResult runs once, if anything matched
7. the matched instances fire

subscribe is an upsert: it re-runs with the full desired set of triggers and the previous webhookData, so either delete the old registration and create a new one, or reconcile the difference. Alongside webhookData it may return eventScopeId - the value an ALL_APPS delivery is matched against to find this workspace - and refreshIntervalInSeconds.

What subscribe returns as webhookData is stored with the webhook and handed to every method that handles a delivery: verify's secret, verifyRequest, handshake, resolveEvents, and the function forms of match and extendResult. Those methods can read it but not change it; only subscribe, refresh and unsubscribe store a new value. Keep there what a delivery has to be checked or recognized against, such as the signing secret the provider issued when the webhook was registered.

The callbackUrl that subscribe receives contains the workspace's API key. When the key is regenerated, the address you registered stops working until each flow that uses the trigger is stopped and started, which runs subscribe again with a new callbackUrl - see Workspace Settings.

One shared webhook serves every trigger you declare. An inbound delivery is verified, its event name is read, and it is routed to every trigger claiming that name.

One trigger per event

Never write one trigger with an event-type parameter: its result then describes none of the shapes it emits, and a flow builder has to configure which event they meant instead of choosing it by name. Splitting costs nothing, because all of them share the one webhook registration.

Use params for filters - which board, which status - never for choosing the event.

Verifying a delivery

verify HMACs the raw body with your secret and compares it to a header in constant time. It covers the common case where the provider signs the body alone. Its secret is a function that receives the configuration and, as a second argument, { webhookData }, so a secret the provider issued at subscribe time works too: secret: (config, { webhookData }) => webhookData.signingSecret. A delivery that fails the check is answered 401 with an empty body, and the trigger does not fire.

It also takes timestampHeader and freshness, for rejecting a replayed delivery. freshness does nothing on its own: without timestampHeader it is silently inert, and a declared header that the provider did not send passes.

A provider that signs a composed string, such as {timestamp}.{body}, cannot be expressed declaratively. Write verifyRequest instead, using Flowrunner.crypto, which offers hmac(algo, key, data, encoding), timingSafeEqual(a, b) and ageSeconds(timestamp). It receives rawBody, headers and webhookData alongside the usual handler bag, and returns true to accept the delivery or false to turn it away with the same 401. Headers reach verifyRequest in whatever casing the provider sent, so look them up case-insensitively.

rawBody is the request exactly as it arrived, as text - the bytes a signature is computed over. It is absent, not empty, when there is nothing to verify: a GET, a request with no body or no Content-Length, or a body over 5 MB. Treat absent as "cannot verify" and return false, so such a delivery is answered 401; hashing an empty string gives a digest that never matches, which looks like a wrong secret:

verifyRequest: ({ rawBody, headers, config }) => {
  if (typeof rawBody !== 'string') {
    return false
  }
  …
},

Answering the provider

Some providers check what your endpoint answers. A challenge-response handshake expects its token back in the response. Return responseToWebhook from handshake or resolveEvents to say exactly what the provider receives:

handshake: async ({ requestBody }) => {
  if (!requestBody?.challenge) {
    return undefined                                      // not a handshake - carry on
  }

  return { responseToWebhook: { rawBody: requestBody.challenge } }
},

Without responseToWebhook, a delivery that passes verification is answered 200 with an empty body. A rejection needs no code of its own: verify, or verifyRequest returning false, already answers a bad signature with 401, which is what a provider's signature check expects. Xero's Intent to Receive check, for example, sends one correctly and one wrongly signed delivery and switches the webhook on only when they are answered 200 and 401.

Field	What it sets
httpStatus	The status code. Optional, 200 by default. Allowed: 200, 201, 202, 204, 400, 401, 403, 404, 409, 410, 422, 429
headers	Extra response headers. Set-Cookie, Content-Length, Transfer-Encoding and the other hop-by-hop headers are dropped
body	A value sent as JSON, with Content-Type: application/json
rawBody	A string sent exactly as written, with Content-Type: text/plain. Wins over body. Unrelated to the request's rawBody that verifyRequest receives

Every field is optional, and a Content-Type in headers overrides the default.

An httpStatus outside the allowed list is answered 200. That includes a redirect and every 5xx, so returning 503 to ask for a retry tells the provider the delivery arrived. Return 429 instead where the provider retries on it.

A string belongs in rawBody. In body it is sent as JSON, so tok-123 arrives as "tok-123", quotes included, and a provider comparing it with the token it sent sees a mismatch.

A challenge in the query string cannot be answered. A bare GET or an empty POST is answered 200 with an empty body, and handshake does not receive the query string, so a provider that sends its challenge there - hub.challenge, validationToken - cannot get it echoed back.

Reject by returning, never by throwing. A handshake or resolveEvents that throws answers the provider with an error, and that error's body carries your error message. FlowRunner does not process the delivery again - whether the provider re-sends it is up to the provider - and the workspace gets a Realtime trigger "Resolve event" failed notification. To turn a delivery away in resolveEvents, return the same answer verify gives a bad signature:

resolveEvents: async ({ body }) => {
  if (!body?.event) {
    return { events: [], responseToWebhook: { httpStatus: 401, rawBody: '' } }
  }
  …
},

Older extensions return responseToExternalService and responseHeaders instead. Both still work, but write responseToWebhook in new code, and never return the old and new fields together.

What you cannot change after shipping

These are persisted or read by live flows, so changing one breaks running automations:

• a trigger's id
• the keys in its params
• the shape of webhookData
• eventScopeId

Shaped events, matched ids and handshake responses are transient, and free to change.
