Testing

Much of what a flow does happens out of sight - it calls a service, reshapes a payload, runs a rule, and moves on. Testing is how you confirm a flow does what you intended before you rely on it. You run it against sample data and check, block by block, that each step received the right input and produced the right result. When a step is wrong, testing points you straight at which block failed and why, so you fix it here rather than in a live run.

This page follows one example flow that reviews an incoming order. It fetches the order from a partner's API, trims it down, reattaches the tidied lines, finds the most expensive item, and decides whether a manager needs to approve it - several different kinds of block, one after another.

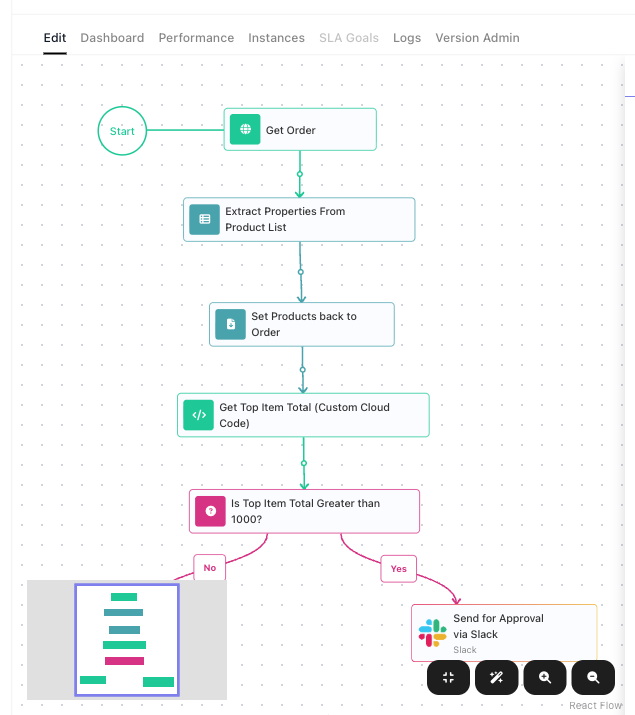

The example flow in the editor: Start, then Get Order (an HTTP Request), Extract Properties From Product List and Set Products back to Order (two Transform Data steps), Get Top Item Total (Custom Cloud Code), and a Condition that branches to Send for Approval via Slack or Auto Approve.

The Test Monitor

You test a flow in the Flow Editor: you run blocks right on the canvas. The Test Monitor panel across the bottom is where you enter the flow's test data and read the results. It has four tabs:

  • Flow Data - the sample input you give the flow to stand in for the data it would receive for real.
  • Block Results - what each block took in and gave back.
  • Logging - a running log of which blocks executed.
  • Flow Context - the run's identifiers, and only those: its Instance ID, Flow ID, and Flow Version ID.

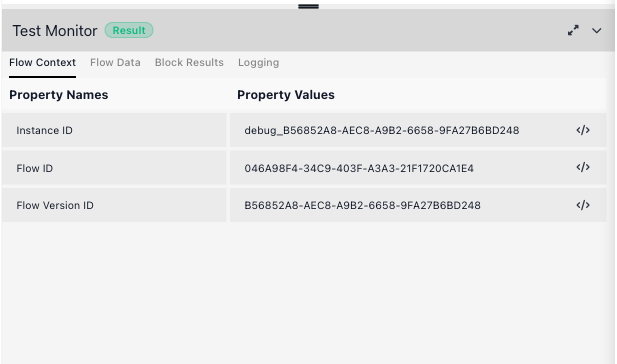

The Flow Context tab: a small table with Instance ID, Flow ID, and Flow Version ID.

You test on an editable version of the flow. A version that is LIVE opens read-only, so make your test runs on a draft version.

Give the flow its test data

A flow usually starts with some Initial Data - here, the id of the cart to fetch. In a test there is no trigger or API call to supply it, so you provide it yourself on the Flow Data tab: add a row, name it, and give it a value. The example needs a cartId.

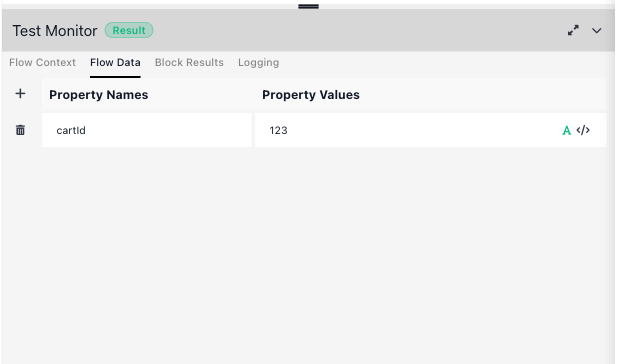

The Flow Data tab with a single row: property name cartId, value 123.

From here on, any block that reads Initial Data → cartId sees 123 when you test it.

Run a block and read its result

Each block on the canvas carries a red play icon, and its settings panel carries a matching Run Block button. Either one runs that single block against the current test data.

The Get Order block on the canvas, showing a red play icon (Run Block) and a lightning icon beside it.

A run shows its outcome on the Block Results tab: the block's Input - the values it resolved - on the left, and its Output - what it produced - on the right. Run the blocks in order, top to bottom, because each block reads the results the ones before it produced.

Watch what that looks like as the order moves through the flow.

Fetching the order. Get Order is an HTTP Request block. It calls the partner's API at https://dummyjson.com/carts/{{Initial Data->cartId}}, and its Output is the whole order the API returned - a nested object with a products array and the order totals.

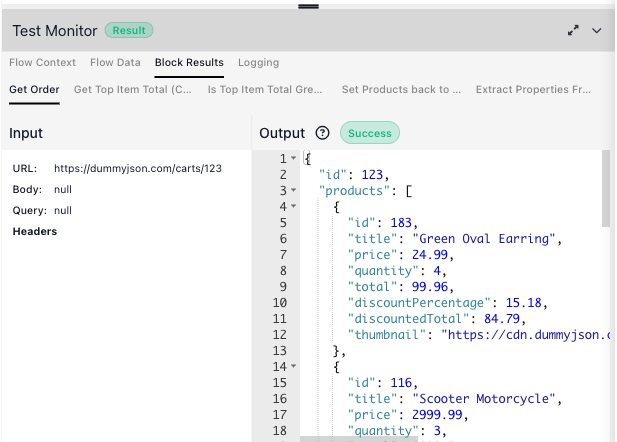

Block Results for Get Order: the Input shows the resolved URL; the Output shows the fetched order as JSON, with a products array and totals.

Trimming it down. Extract Properties From Product List is a Transform Data block that keeps the few fields that matter. Its Input is the big response from the step before; its Output is a clean list of { title, quantity, price, total }.

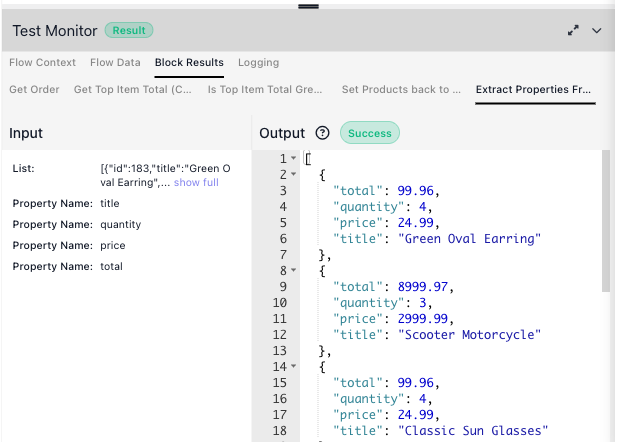

Block Results for the transform: the Input is the raw product list; the Output is the trimmed four-field lines.

Putting it back together. That trim hands back a bare array - the tidy lines, cut loose from the order they came from. Set Products back to Order is a second Transform Data step that writes the array onto the order's products property, so the order keeps its totals and carries the tidy line list forward. You can see it in the result: the Input is the order plus the trimmed array, and the Output is the order again, its products now the four-field lines.

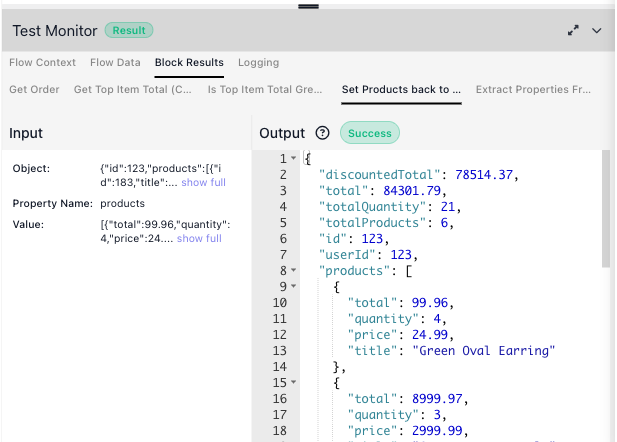

Block Results for Set Products back to Order: the Input is the order and the trimmed array; the Output is the order with its products replaced by the tidy lines, totals intact.

Computing over it. The Get Top Item Total (Custom Cloud Code) block loops those lines to find the most expensive one. Its Input shows the arguments passed in and the code itself; its Output is what the code returned - { topItem, topItemTotal }.

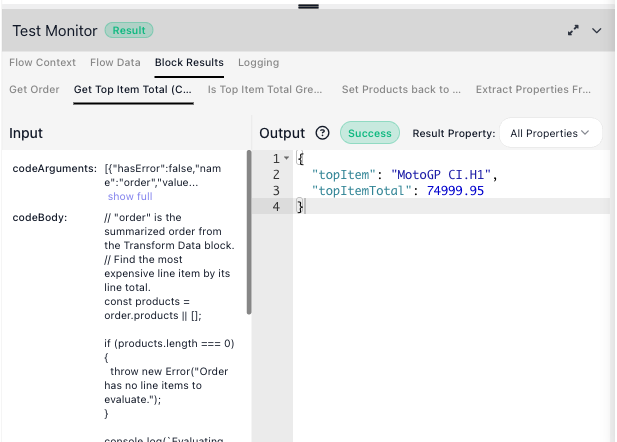

Block Results for the Custom Cloud Code block: the code in the Input, and the returned topItem and topItemTotal in the Output.

Deciding. The Condition compares the most expensive item's total against a threshold. Its Input shows the two values - 74999.95 against 1000 - and its Output is the branch it takes, conditionResult: true.

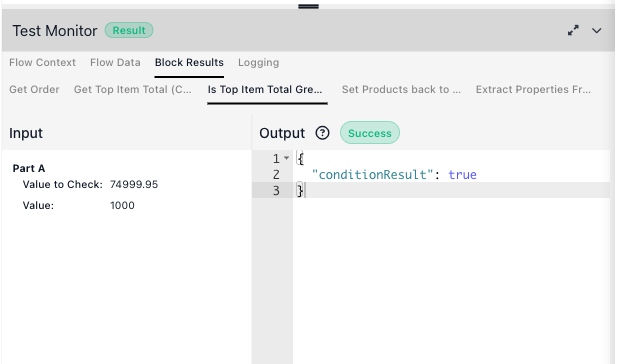

Block Results for the condition: the Input compares 74999.95 to 1000; the Output is conditionResult true.

Change the cartId on the Flow Data tab and run the blocks again to send a different order through - a smaller cart takes the condition's other branch.

Edit an Output to test a case

Each result's Output is an editable field. Change a value there and every block after it reads your edited version instead of the original. It is how you test a case your sample data does not happen to cover - a very large order, a missing field, an empty list - without touching the flow or the data source. Set the value you want, run the later blocks again, and they respond to it.

Run an instance from a block

Running a block tests one step. To run the flow straight through from a chosen point - no stopping between blocks - use Run instance from this element, the lightning icon beside a block's play icon. It launches an uninterrupted execution starting at that block.

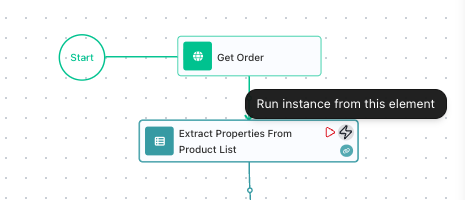

Using run instance from this element to run through the flow from a specific point.

It opens the Launch Flow Instance dialog. Enter the Initial Data to start with, or pick a Previous Instance to reuse the data from an earlier run - including a real instance from when the flow was live, which is a quick way to reproduce a case that actually happened. LAUNCH starts the run.

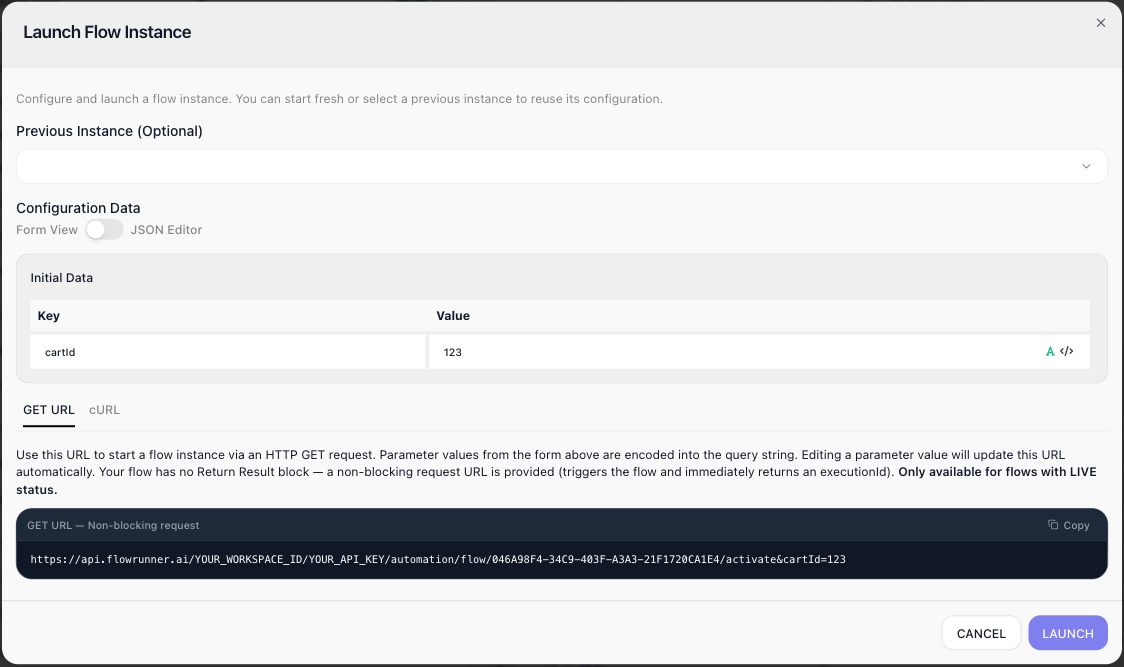

The Launch Flow Instance dialog: a Previous Instance selector, an Initial Data table (cartId 123), a GET URL to trigger the flow over HTTP, and Cancel and Launch buttons.

The dialog also offers a GET or cURL URL that triggers the flow over HTTP, once the flow is LIVE. An uninterrupted run of a LIVE version is a real instance and counts against your allowance; from a draft version it is a test, and free.

What testing shows you, and what to watch

  • Errors are surfaced, not hidden. When a block cannot run - a value it needs is missing, or code throws - its Output shows an Error with the message, so you see the cause on the spot instead of in a failed live run.
  • A running timeline. Logging lists each block as it executes, which is how you follow a longer test in order.
  • Testing an action really performs it. A test run of an action block does the real thing: Get Order really calls the API, and testing a Slack or Send Email block really sends the message. Pure blocks - transforms, conditions, custom code - only compute, so they are always safe to repeat. Be deliberate when you test-run a block that reaches outside the flow.

Testing does not cost an execution

Running blocks and stepping through a draft cost nothing - they do not count against your monthly allowance. An execution is spent only when a LIVE flow produces a real instance. See Billing for what does and does not count.
