Holding Values in Variables

A block's result is already readable by every step after it, so often you do not need to store anything - you point at it. A variable earns its place when that is not enough: when a value has to be built up over several steps, survive a loop, or be read under one name whichever path the run took. This page is about when to reach for one and the shapes that keep coming up. For what a variable is, and how to write, read, and clear one, see Variables & Data Buckets.

When you need a variable

Reach for one when any of these is true:

  • The value changes as the run goes. A running total, a count, a list you keep adding to. A block result is written once; a variable is meant to be updated.
  • The value has to escape a loop. A result produced inside a List Iterator or Repeat belongs to that pass and is gone after it. A variable declared outside the loop is the one thing that carries across passes and survives the loop. See Passing Data Between Blocks.
  • Different branches have to hand the same thing forward. When a run can take one of several paths and the step after the merge needs one value, have each branch set the same variable. The later step reads one name instead of guessing which branch ran.
  • The value is assembled in pieces. A message built across several steps, or a payload put together before a call.

If none of those apply, skip the variable and read the block's result directly. It is one less thing to keep in your head.

Building a value up as the run goes

Accumulating always has the same shape: set the variable before the loop, update it on each pass, and read it after. What differs is the block that does the updating, and picking the wrong one is the usual mistake.

A running total or count. Seed the variable before the loop - Cart Total set to 0 - and inside, a Set Variables block sets it to itself plus this pass's amount. One catch worth knowing before it bites: the + has to be the Expression Editor's plus operator picked from its Operators list. A typed + joins the two values as text instead of adding them.

A growing list. This one is not a Set Variables job. Seed the variable before the loop with the built-in Empty List value:

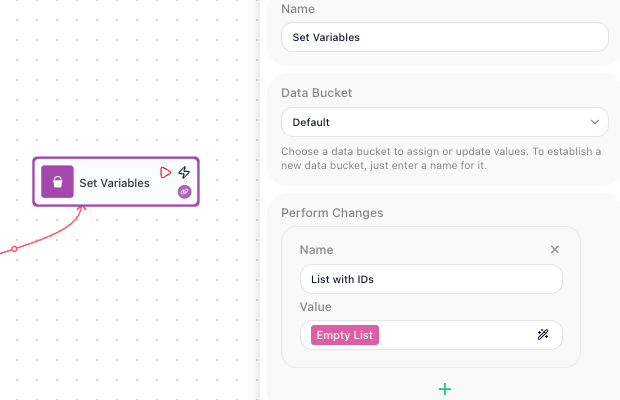

A Set Variables block before the loop, its panel showing Data Bucket Default and, under Perform Changes, a variable named "List with IDs" whose value is the Empty List pill.

Then inside the loop, a Transform Data block running the Add To List operation appends the entry and writes the result straight back to that same variable:

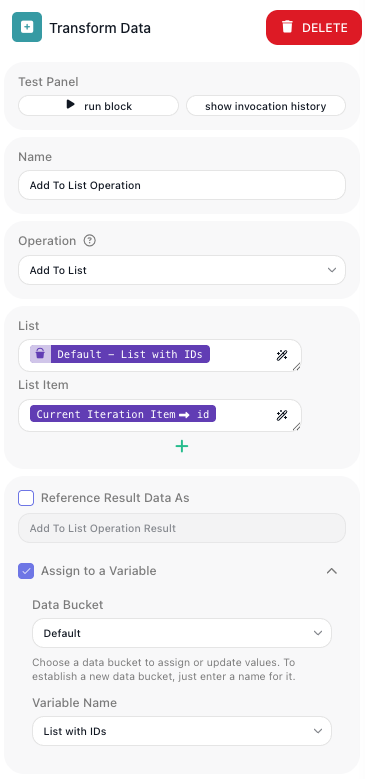

The Transform Data block named "Add To List Operation": Operation set to Add To List, List pointed at the Default - List with IDs variable, List Item set to Current Iteration Item's id, and Assign to a Variable turned on writing back to List with IDs.

Both patterns are walked through end to end in Working Through a List.

The other shapes you will use

  • Set a flag, check it later. When something early in the run decides how a much later step behaves, store the decision rather than working it out twice. A Needs Review flag set during validation can be tested near the end, long after the data that produced it has been left behind.
  • Give one name to a value from many paths. Each branch writes Ticket - Owner with its own answer, and the step after the merge reads Ticket - Owner without caring which branch set it.
  • Lift a result out with Assign to a Variable. Most blocks can write their result into a variable at the same time as publishing it, from the Assign to a Variable setting in the block's own configuration panel. It is the tidiest way to get a value out of a loop or a subflow, with no separate Set Variables step.

A block selected on the canvas with its configuration panel open: below Reference Result Data As, the Assign to a Variable setting is turned on, with a Data Bucket of Default and a Variable Name to write the result into.

Remember it lasts only for the run

Variables are wiped when the run ends, which is what keeps runs independent. It is also the limit: a variable cannot carry anything to the next run. When a value has to survive, see Sharing Data Across Runs & Flows.
