Shared Memory

A flow forgets almost everything the moment a run ends, and most of the time that is exactly what you want. But every so often a flow learns something worth keeping: how many orders it has processed so far, where in a long list last night's run stopped, a login token it fetched an hour ago and can still reuse. FlowRunner™'s Shared Memory is where a flow holds on to that. It is a key/value store that belongs to the flow itself, so what one run writes is still there, waiting, for the next run to pick up.

Memory that carries across runs

A Data Bucket variable lives and dies inside a single instance: set while the run works, wiped clean the moment it ends, so every run starts from a blank slate. Shared Memory is the opposite kind of thing. It belongs to the flow, not to any one run, and every instance reaches into the same store, so a value one run writes is waiting for the next run tomorrow, or for an instance running right beside it this second. Nothing sweeps it away when a run ends; a value stays until you overwrite it, delete it, or let it expire, a setting that stays off until you turn it on (covered at the end).

Writing a Shared Memory value

You write to the store with Shared Memory: Put, in the Actions group of the palette. Hand it one or more name-and-value pairs and it files each value under its name. That name is the key, the handle a later Read or Delete uses to find the value again. The value can be something you type or an expression worked out at run time, so a Put can stash the result an earlier block just produced.

Write to a name that already holds a value and it overwrites; write to a new name and it creates. Put replaces, it does not merge. So to grow a value rather than replace it, whether you are bumping a counter or adding to a list, you read what is there, work out the new value, and write that back.

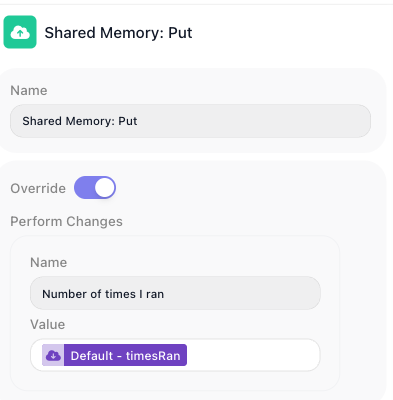

The Shared Memory: Put block's configuration: an Override toggle turned on, and a Perform Changes entry with the name "Number of times I ran" and a value - the value stored under that name.

That overwrite behaviour is the Override toggle's doing: with it on, a write to a name that already exists drops the old value and keeps the new one.

Reading a Shared Memory value

A saved value is only worth saving if a later run can get it back, and that is the whole job of Shared Memory: Read, also in the Actions group. Give it a key and it hands back whatever is stored there.

You reach a Read's value the way you reach any block's result: through its result alias, the name in Reference Result Data As. Leave that at its default and later blocks refer to the value as Shared Memory: Read Result. Turn on Assign to a Variable instead and the Read drops its result straight into a Data Bucket variable you name, which earns its keep when the Read sits inside a List Iterator or Repeat loop: the plain alias would be stuck inside the loop, but the variable carries the value back out.

There is a first-run problem to head off. The very first time a flow runs, nothing has been written under the key yet, so a Read comes back empty-handed. That is what Default Value is for: set it, and when the key is missing the block returns that default instead of nothing. Key a counter's Read to a Default Value of 0 and the very first instance reads a clean zero rather than stumbling over an empty value.

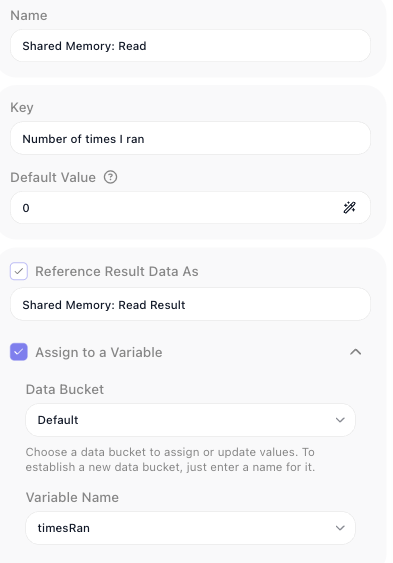

The Shared Memory: Read block's configuration: Key set to "Number of times I ran", Default Value set to 0, Reference Result Data As at its default Shared Memory: Read Result, and Assign to a Variable turned on, writing into the Default bucket's timesRan variable.

The counter pattern

Read and Put are built to work as a pair: read the saved value, work out the new one, write it back. That read-change-write loop is how a flow carries a number, a position, any running total forward from one instance to the next.

A run counter is the tidiest example: number each instance 1, 2, 3, even though every instance starts life knowing nothing. Three blocks do it.

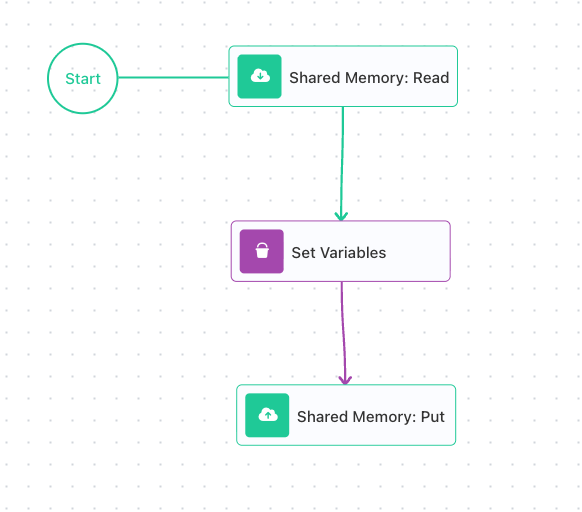

A flow: Start connects rightward to a Shared Memory: Read block; Read connects down to a Set Variables block, which connects down to a Shared Memory: Put block - the read, change, write-back chain of a counter.

  • Shared Memory: Read reads the count, its Default Value set to 0 so the first instance starts clean, and hands it to a variable (here timesRan) through Assign to a Variable.
  • Set Variables adds one to timesRan.
  • Shared Memory: Put writes timesRan back under the same key.

On the first instance the Read finds nothing and falls back to its Default Value, 0; Set Variables nudges it to 1; Put writes 1 back. The next instance reads 1 and writes 2; the one after, 2 and 3. The number climbs, run after run, because Shared Memory is quietly holding it in between, which is the whole point.

The same read-change-write shape drives a cursor. A flow that chews through a long list a batch at a time saves where it stopped under a key like cursor, then reads that key next time to pick up exactly where it left off instead of starting the list over.

Clearing a Shared Memory value

Because Shared Memory holds on by design, now and then you need to let go: restart a cursor, reset a counter, drop a one-time token you are finished with. Shared Memory: Delete does that (also in the Actions group), and its Mode radio decides how much it takes:

  • Mode set to Keys: you name the exact keys to drop, and only those go; everything else stays. The careful choice.
  • Mode set to All: the block wipes the entire store, every key the flow has ever written, in one stroke. The blunt reset for when the flow should forget everything.

The Shared Memory: Delete block selected on the canvas with its configuration panel: the Mode radio set to Keys rather than All, and the single Key to remove set to cursor.

Delete leaves nothing behind to read, so to check a key is really gone, just read it: a Read of a missing key returns its Default Value, exactly as if the key had never existed. In the cursor flow above, deleting cursor after the last batch makes the next instance's Read fall back to its default and start the list over from the top.

Mode: 'All' clears an agent's memory too

An AI Agent keeps its conversation memory, its Messages History, in this very same store, so a Delete with Mode set to All sweeps that away along with everything else. When you only mean to clear your own keys, name them with Mode set to Keys; the agent's memory stays untouched.

Sharing memory per caller

By default every instance shares one store, which is perfect for a flow-wide counter and wrong the moment each caller needs a memory of their own. Picture a support chatbot built as a single flow, fielding hundreds of customers at once. Every message is an instance, and with one shared store the notes it keeps for Dana and the notes it keeps for Sam land in the same place, so Dana's next message comes back laced with Sam's history. One store cannot serve them both; each customer needs their own.

The Memory Anchor gives you exactly that. Think of it as the label the store is filed under: point the anchor at something that identifies the caller, a customer id or a chat session id, and FlowRunner keeps a separate store for every distinct value. Two messages from the same customer share one store and build on each other; two different customers never touch. You set the anchor from the flow's Flow Memory settings; here it is pointed at the customer id carried in each message's data.

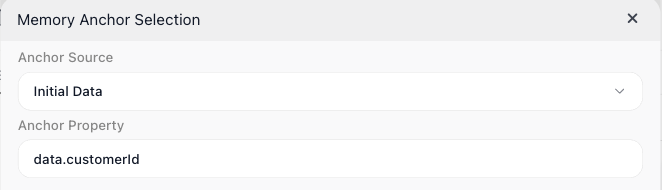

The Memory Anchor Selection dialog: Anchor Source set to Initial Data and Anchor Property set to data.customerId - the anchor pointed at each caller's customer id, so every instance for a given customer shares that customer's own store.

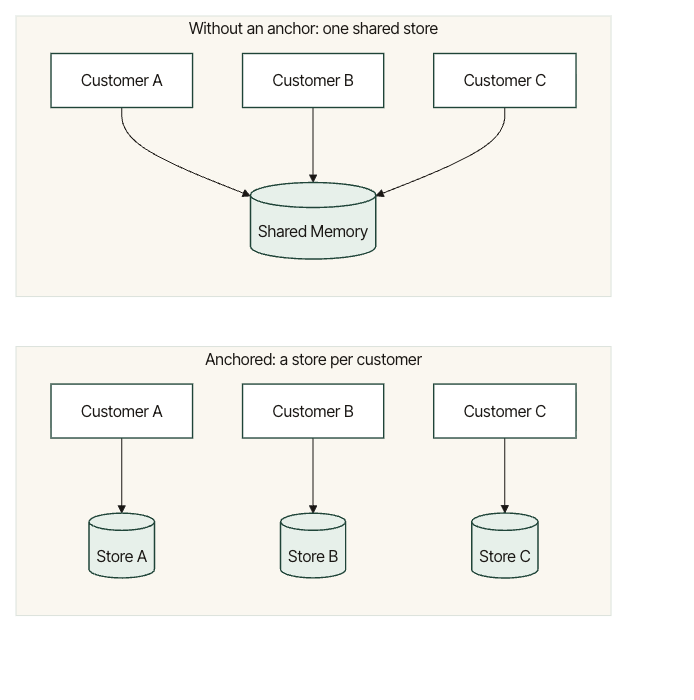

Two panels. Top, "Without an anchor: one shared store" - Customer A, Customer B, and Customer C all point at a single Shared Memory store. Bottom, "Anchored: a store per customer" - Customer A points at Store A, Customer B at Store B, and Customer C at Store C, each its own separate store.

With that one anchor in place, a single count key holds a separate count for every customer at once: the foundation of per-user, per-session memory, where a "user" can just as easily be another system calling in. The same scoping wraps an AI Agent's Messages History, so one agent can hold a separate, private conversation with every customer.

Which value to anchor on, the exact path to it, and what should happen when a caller turns up with no anchor value at all (a setting called Missing Anchor Policy, right beside the anchor) are a short setup worth doing with care. The Per-User Memory guide walks through all three, end to end.

How long a shared value lasts

A store per caller is a fine thing until you have a million stale ones, a lingering store for every customer who ever sent a single message. The Memory Expiration Policy is the cleanup crew: tell it how long a store may sit untouched, and FlowRunner clears any store that goes that long with no run reading or writing it. It lives in the same Flow Memory settings as the anchor, with a handful of choices:

  • Never - the default; nothing ages out, and a value stays until you change or remove it.
  • 1 hour after last run activity, 12 hours after last run activity, or 24 hours after last run activity - a store is cleared once that much idle time has passed with nothing touching it.
  • Custom - the same idea, with an exact span you set in days, hours, minutes, and seconds.

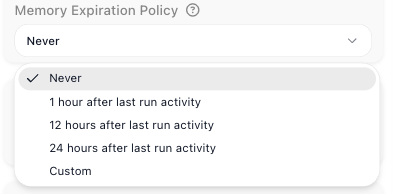

The Memory Expiration Policy dropdown open, listing Never, 1 hour after last run activity, 12 hours after last run activity, 24 hours after last run activity, and Custom.

That is why expiration and anchoring go hand in hand: when each anchor value is a short-lived session, letting idle stores age out keeps a flow's memory from growing without bound. For a value you mean to keep for the life of the flow, a lifetime counter, say, leave it at Never.
