Waiting on an External System¶

An External Callback trigger placed in the middle of a flow pauses the run until an outside system makes an HTTP request to a URL. Reach for it to hand work to something that takes its own time - a payment to clear, a document to finish processing, a person to approve a request - and resume the moment that system reports back, with its data in hand.

The callback endpoint¶

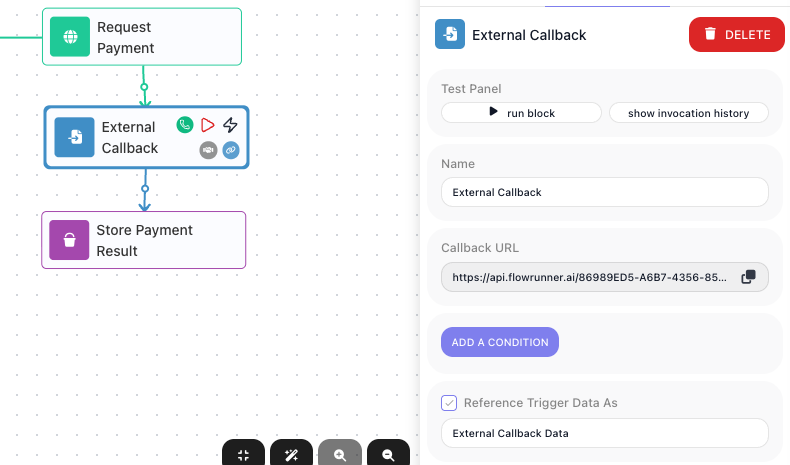

Drop an External Callback from the Triggers palette group into a flow, and FlowRunner generates one activation endpoint for that trigger. To get its address, open the block: the Callback URL field holds the complete URL, with a copy button. You hand that value to the outside system as-is - you never assemble it from ids.

The address ends in the trigger's activation path:

POST|GET  .../automation/flow/{FLOW-ID}/trigger/{TRIGGER-ID}/activate

{FLOW-ID} and {TRIGGER-ID} identify this flow and this trigger. Where the trigger sits in the flow decides what a call does:

At the start of a flow - each call starts a new instance, and the call's data becomes that instance's trigger data.
In the middle of a flow - the run pauses when it reaches the trigger, and a call resumes a paused instance. That is the case this page covers.

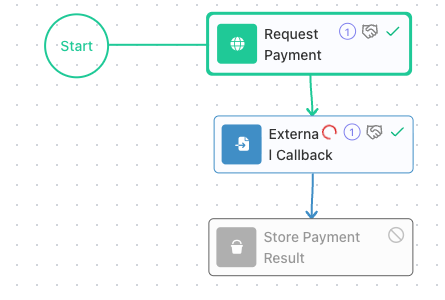

At a mid-flow trigger the run pauses and stays an active instance - status RUNNING, the steps after the trigger pending - until a call arrives. The wait is not unlimited: a run holds at the callback for up to the workspace plan's maximum, 30 days on Growth plans and one year on the others.

Sending data to the trigger¶

A caller activates the trigger with an HTTP GET or POST, and whatever it sends becomes the trigger-data object that later steps read. The method decides where that data goes: a GET carries it as query parameters, and a POST carries it as a JSON body (a POST's query string is ignored except for execution, below). Both calls below start a new run of a flow whose first block is the trigger:

POST - the JSON body becomes the trigger data:

curl -X POST '<Callback URL>' \
  -H 'Content-Type: application/json' \
  -d '{"event":"payment.succeeded","orderId":"ORD-9001","amount":4999}'

GET - each query parameter becomes a field of the trigger data:

curl '<Callback URL>?event=payment.succeeded&orderId=ORD-9001&amount=4999'

The payload then lands under the trigger's alias for later steps - see Reading the callback data.

Resuming the right run: the `execution` parameter¶

The endpoint names the flow and trigger, not one run - and more than one run can sit paused at the same trigger at once (a timer might start an order-processing run every few minutes, each waiting for its own payment). A resume call must say which run to wake, with the execution query parameter on the URL (executionId works as an alias):

POST  <Callback URL>?execution={execution-id}

execution Param Value	Resumes	Response (HTTP 200)
`execution={execution-id}`	the one run with that id	`{"executionId":"{id}"}`
`execution=any`	one waiting run - FlowRunner picks which; use when the waiting runs are interchangeable	`{"executionId":"{id}"}`
`execution=all`	every run waiting at this trigger - one event wakes them all	`{"executionId":"{id1}, {id2}"}`

Errors come back as HTTP 400 with a JSON code:

Situation	`code`
Mid-flow trigger called with no `execution`	`28056`
Flow is not LIVE	`28010`
`execution={id}` - no run with that id is waiting	`28059`
`execution=any` - nothing is waiting	`28060`

execution=all with nothing waiting is not an error: it returns {"executionId":null} and resumes nothing. A resume call carries data the same way a start call does:

curl -X POST '<Callback URL>?execution=838ECE57-3E17-42F5-9721-4B1611522D7C' \
  -H 'Content-Type: application/json' \
  -d '{"event":"payment.succeeded"}'

Getting the execution id to the caller¶

To resume one specific run, the caller has to send that run's execution id - and the id is assigned at runtime, unique to each run, so it does not exist until the run starts. The flow itself hands it out during the run, before it reaches the callback. There are three ways to do that, depending on what the outside system can accept.

The system accepts a callback address per request¶

When the flow itself calls the system - the Request Payment step - and that call can include a return address, the flow sends a ready-made one. In that step, open the Expression Editor and build the address from two picked references: the Callback URL (the External Callback URL entry, under External Callback URLs) and this run's Execution ID (under Flow Context), joined by ?execution=. The result reads <Callback URL>?execution=<Execution ID>, and each run resolves those references to its own values, so the system gets an address that points back at this exact run.

sequenceDiagram
    participant F as Your flow
    participant E as External system
    F->>F: Run starts and gets its Execution ID
    F->>E: Request with the full return address (Callback URL and execution id)
    Note over F: Pauses at the External Callback
    E->>E: Does the work, which may take time
    E->>F: Calls the return address back, with its result
    Note over F: Run resumes with the data

The system posts to one fixed URL¶

A webhook you configure once in the system's dashboard cannot take a per-run address. The run has to deliver its execution id another way - for example an email or web page the flow generates with the id in a link, https://yourapp.example/confirm?executionId=<id> - and whatever handles that link appends ?execution=<id> to the fixed URL. When the waiting runs are interchangeable, the fixed URL can instead carry ?execution=any.

sequenceDiagram
    participant F as Your flow
    participant R as Recipient (user or app)
    F->>F: Run starts and gets its Execution ID
    F->>R: Sends the execution id out of band (email or link)
    Note over F: Pauses at the External Callback
    R->>R: Acts when ready
    R->>F: Calls the fixed Callback URL, appending the execution id
    Note over F: Run resumes with the data

The caller started the run through the Call Flow API¶

A system that started the run through the Call Flow API received {"executionId":"..."} in the response, and reuses that id to call the trigger.

sequenceDiagram
    participant F as Your flow
    participant E as External system
    E->>F: Starts the run via the Call Flow API
    F-->>E: Returns the executionId
    Note over F: Runs, then pauses at the External Callback
    E->>E: Does the work, which may take time
    E->>F: Calls the Callback URL with that execution id
    Note over F: Run resumes with the data

Capturing the payload shape: Learning Mode¶

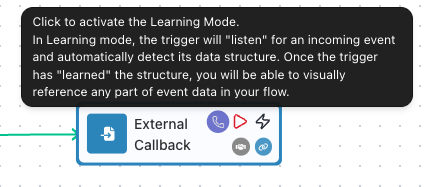

A trigger computes no result of its own - the data it exposes is whatever the caller sent. Learning Mode records the shape of that payload so its fields appear in the Expression Editor, ready to pick, instead of you having to know their names. It is off by default; turn it on with the purple callback icon on the block's hover toolbar, then send one sample request to the Callback URL. It listens while you build - the flow need not be LIVE.

Send the sample the same way the real caller will - for example:

curl -X POST '<Callback URL>' \
  -H 'Content-Type: application/json' \
  -d '{"event":"payment.succeeded","orderId":"ORD-9001","amount":4999,
       "currency":"USD","customer":{"email":"dana@example.com"}}'

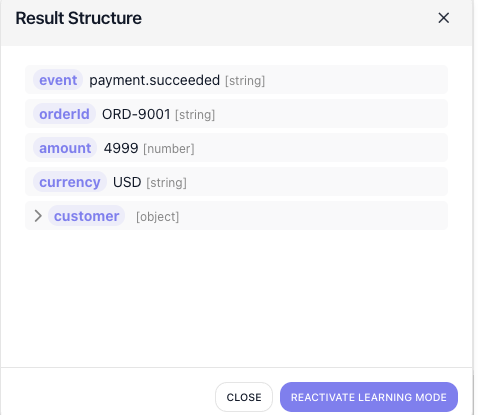

Once a sample arrives, the trigger records its structure - nested objects included - and the callback icon turns from purple to green. Click the green icon to see what it captured: the Result Structure popup lists every field with its value and type, and those fields are now available to reference in later steps.

Reading the callback data¶

The payload is exposed under the alias set in Reference Trigger Data As - External Callback Data by default. You never type a field path. To reference a field, open the Expression Editor in the step that needs it, find External Callback Data in the data tree, drill down to the field, and double-click or drag it in; FlowRunner inserts the reference for you. The inserted reference reads like External Callback Data → event for a top-level field or External Callback Data → customer.email for a nested one - but you build it by picking, not by typing that text.

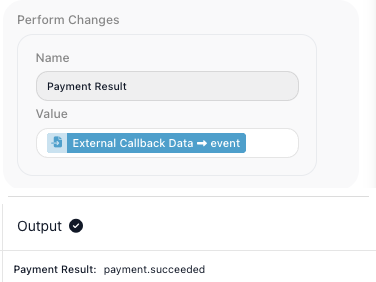

In the running example, the Set Variables step after the trigger picks External Callback Data → event - the payment outcome the provider sent - and stores it, here payment.succeeded, a value the flow could not know until the callback arrived:

Filtering which calls activate: conditions¶

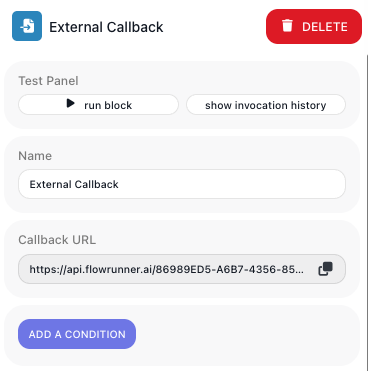

One endpoint often receives events you do not want to act on - a payment provider posts payment.succeeded to the same URL as its refunds and disputes. ADD A CONDITION gates the trigger: when a call arrives, the trigger evaluates the condition first and only activates - starts or resumes the run - if it is true. A false condition is accepted (HTTP 200) but does nothing, so a paused mid-flow run stays paused for the next matching call.

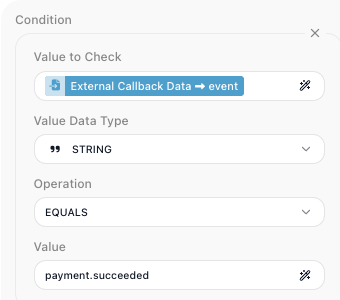

Gate on whatever field of the incoming payload tells the calls apart - a status, a type, an event name, whatever your caller actually sends. A condition compares a Value to Check - a field you pick from the callback data in the Expression Editor - against a Value you enter, using an Operation for its Value Data Type. In this example the webhook carries an event field, so checking External Callback Data → event EQUALS payment.succeeded lets a completed-payment call through while a call whose event is refund arrives but leaves the run paused. Your own condition points at your own payload's field and value.

Things to watch for¶

The flow must be LIVE for the trigger to respond to real traffic - whether it starts a run or resumes one. A call to a stopped flow returns 28010. Two build-time exceptions let you test before publishing: Learning Mode, above, listens for one sample request, and running the block on its own starts a debug execution that waits for your call.
A mid-flow resume always needs execution. Without it the call returns 28056; the endpoint cannot tell which paused run to wake.
